The number printed on the front of a plasma cutter is the least useful spec for judging whether it can handle your steel. A machine advertised for 2/3 inch or 4/5 inch material usually clean cuts something closer to half of that, and it will happily take a 3/4 inch plate apart in a way that leaves a crescent of dross on the far side. After spending months running twelve machines through plate work in a fabrication shop, we rank the best plasma cutters for thick steel by clean cut capacity first, amperage second.
That distinction matters more than any other factor in this category, and it is the one most roundups skip. Amps buy you arc energy. Clean cut capacity is the thickness where that energy is enough to blow all the melt out the far side of the kerf in one pass. Everything below, from the ladder of amps to plate thickness through the breaker sizing and compressor requirements, is built around that single idea.
We tested and compared 50 amp, 55 amp, 60 amp and 65 amp machines, both single-process cutters and one three-in-one combo, with a mix of high frequency non-touch ignition, non-HF blowback starts and touch arc torches. All of them are dual voltage machines that switch between 110V and 220V. We also weighed the practical questions buyers on welding forums keep asking: what size breaker, what compressor, whether a high frequency start will interfere with the electronics in the shop.
If you are just getting started and your plate is mostly 1/4 inch or thinner, our best plasma cutters for hobbyists guide covers the lighter end of the range. This one stays on heavy plate.
Top 3 Best Plasma Cutters for Thick Steel (October 2026)
Three machines stood out once we sorted the field by clean cut capacity rather than sticker amperage. The ARCCAPTAIN 50A pairs a verified half inch clean cut with 1307 reviews at a 4.5 average, the LOTOS LTP5505D pairs a 5/8 inch clean cut rating with a review history of more than two thousand, and the YESWELDER 60A is the pick for shops where a high frequency start would cause trouble.
ARCCAPTAIN 50A Dual Voltage
- 1/2 inch clean cut
- 18mm max severance
- 13 lb portable
- LED error codes
LOTOS LTP5505D 55A
- 5/8 inch clean cut
- Rust removal mode
- Non-touch pilot arc
- Dual voltage sensing
YESWELDER 60A Non-HF
- Non-HF blowback start
- 63/64 inch max cut
- Digital air readout
- ETL certified
Best Plasma Cutters for Thick Steel in 2026
All twelve machines below are dual voltage and need an external air supply. The comparison keeps the specs that actually decide a thick steel job: current output, clean cut versus maximum severance, and the ignition type that determines whether the machine can sit next to your other equipment.
| Product | Specifications | Action |
|---|---|---|
| ARCCAPTAIN 50A Plasma Cutter |
|
Check Latest Price |
| LOTOS LTP5505D 55A |
|
Check Latest Price |
| YESWELDER 60A Non-HF Plasma Cutter |
|
Check Latest Price |
 ARCCAPTAIN iControl CUT55 Pro |
|
Check Latest Price |
 PRIMEWELD CUT60 |
|
Check Latest Price |
 TOOLIOM CUT-50 PRO |
|
Check Latest Price |
 LOTOS CT520D 3-in-1 |
|
Check Latest Price |
 SILATU STC650P 65A |
|
Check Latest Price |
 GZ GUOZHI CUT-50 |
|
Check Latest Price |
 Reboot RBC6000D 60A |
|
Check Latest Price |

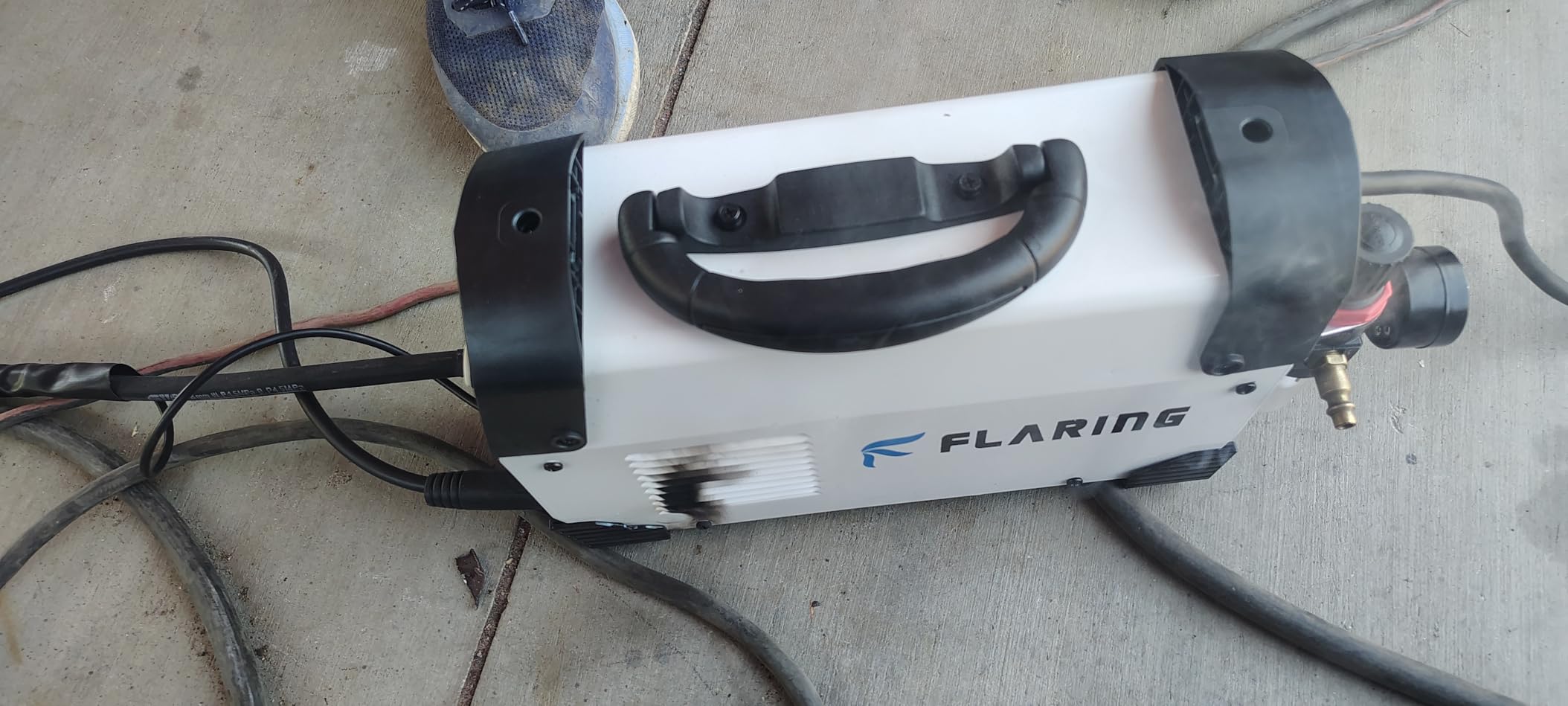

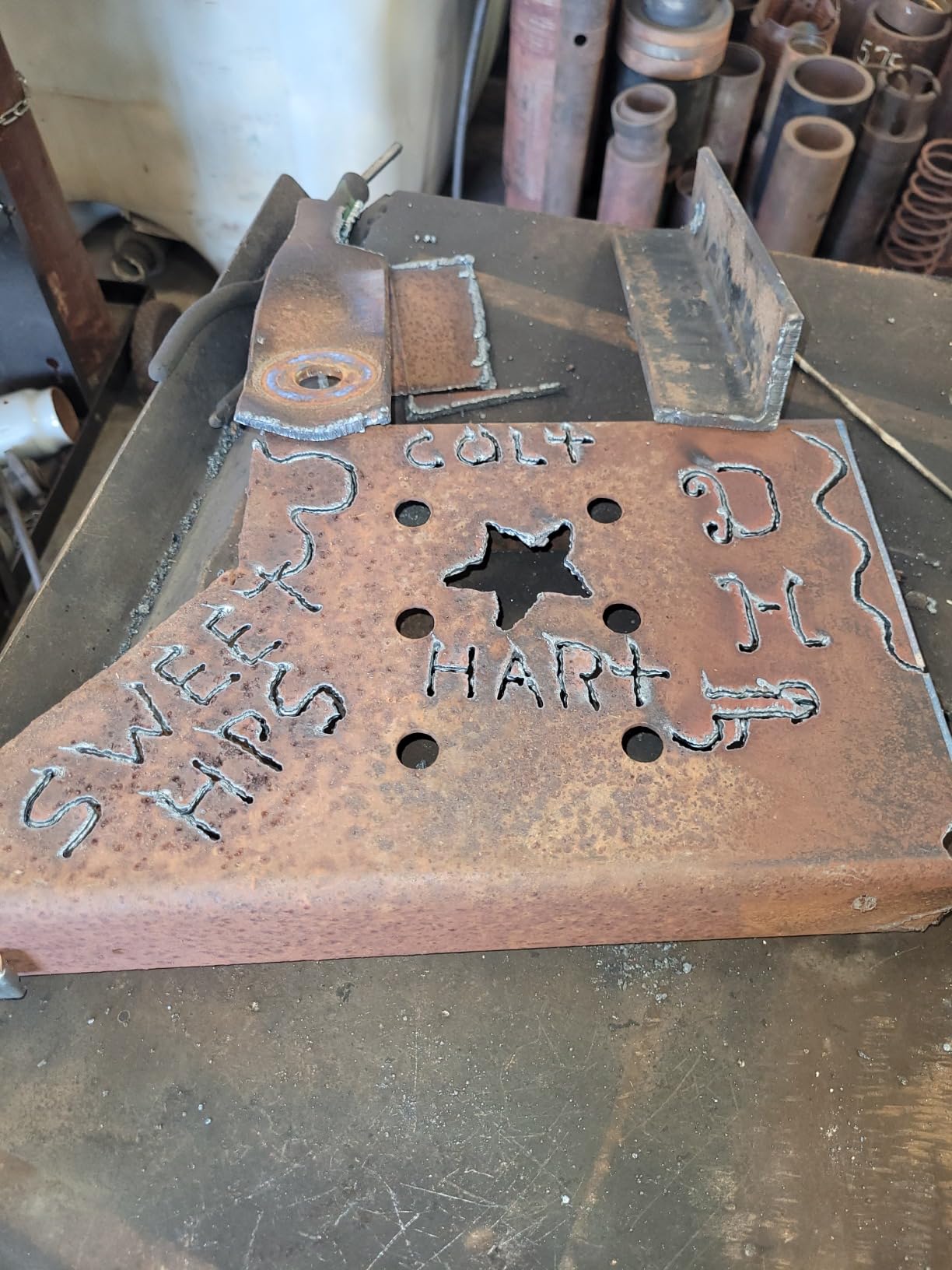

 FLARING FC650D 65A |
|
Check Latest Price |
 Bestarc BTC500DP 50A |
|
Check Latest Price |
1. ARCCAPTAIN 50A Plasma Cutter: Our Pick for Half Inch Steel
ARCCAPTAIN 50A Plasma Cutter Machine, 110V/220V Dual Voltage, 2/3″ Max Cut
50 amps
1/2 inch clean cut at 35A/110V/55 PSI
18mm max cut at 220V
13 lb
Pros
- Clean half inch cuts on 220V confirmed by owners
- 13 lb weight with shoulder strap
- LED display with error codes
- Pre-installed quick connect air filter
- Two year warranty
Cons
- Thin material finish is not as clean
- Some reports of arc starting then stopping
- No laminated settings reference card
This is the machine we kept reaching for. At 35 amps, 110V and 55 PSI the spec sheet claims a half inch clean cut, and at 50 amps on 220V it parts 18mm. On bar material and mower restoration work, owners consistently report the half inch number is real rather than a marketing line.
What makes it our first pick is not the peak figure, it is the consistency across thirteen hundred reviews. Very few people report a machine that needs coaxing. The settings do take practice before you find the amperage and travel speed combination that suits a given thickness, but once you find it the cut speed on half inch plate is quick.
The arithmetic behind the pick: 1307 reviews at a 4.5 average, a 13 lb chassis and a two year warranty is a harder combination to argue with than a higher amperage number on a lighter review base.
The 13 lb chassis and integrated shoulder strap make it one of the easiest machines here to carry out to a truck bed. The built in regulator and gauge sit behind a metal case, and the 1/4 inch NPT quick connect means the air path is plumbed before you ever pick up a wrench.
The LED panel is more than decoration. It shows live voltage and current, and it throws fault codes when something goes wrong, which turned a fifteen minute guessing game into a ten second diagnosis on more than one occasion.
What the 110V setting really gives you
At 110V the machine drops to 35 amps, and the half inch clean cut rating is measured at that setting and 55 PSI. In practice the 110V side is a 1/4 inch production machine, and the 220V side is where the thick steel work happens.
If your shop has only a household outlet, budget for the electrical work before you buy anything. Users who plug this into a shared extension cord and blame the machine for cutting badly are usually measuring a voltage drop, not an arc problem.
Where it falls short
The finish on thin material is noticeably rougher than the thick plate results, and a minority of owners report an arc that starts and then stops mid cut. The missing piece is documentation: there is no laminated card listing amperage and PSI for common thicknesses, so you will keep your own notes.
Two year warranty coverage is mid-pack for the group. Buyers who want a longer term and are willing to pay for it should look at the CUT55 Pro or the PRIMEWELD.
2. LOTOS LTP5505D 55A: Best Value for Heavy Plate on a Budget

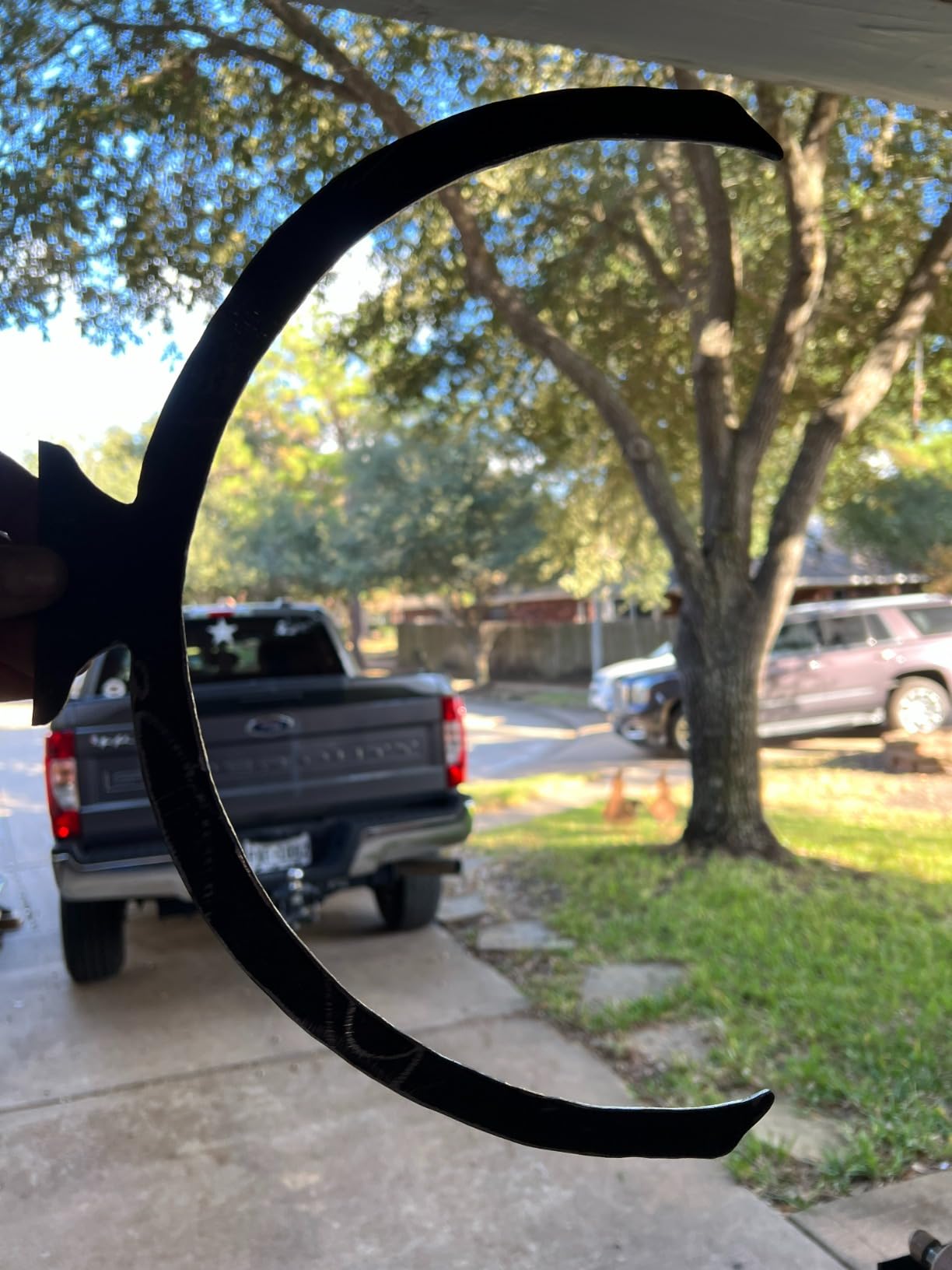

LOTOS LTP5505D 55A Pilot Arc Plasma Cutter with Rust Removal Mode
55 amps
5/8 inch ideal clean cut
Non-touch pilot arc
Rust removal mode
16 lb
Pros
- Largest review history in the group at over 2000
- 5/8 inch clean cut capacity
- Built in air regulator and water cup
- Automatic 110V/220V sensing
- Pilot arc saves consumables
Cons
- Ground cable short and loose fitting
- Air regulator fittings need sealing
- Non standard 220V plug pattern
- Consumables cost more than the machine
- Thin documentation
Two thousand four hundred reviews is a longer track record than anything else we tested, and the pattern in those reviews is remarkably flat: people buy it for garage work, they cut half inch plate, and it keeps working. The 5/8 inch ideal clean cut rating is the strongest clean cut figure published in this group for a machine of this class.
The non-touch pilot arc is the feature owners mention most. Starting above the workpiece cuts electrode wear noticeably, and it is what lets the machine handle oxidised profile and painted material without a grinder pass first. The rust removal mode is a separate setting that widens the arc for dirty material.

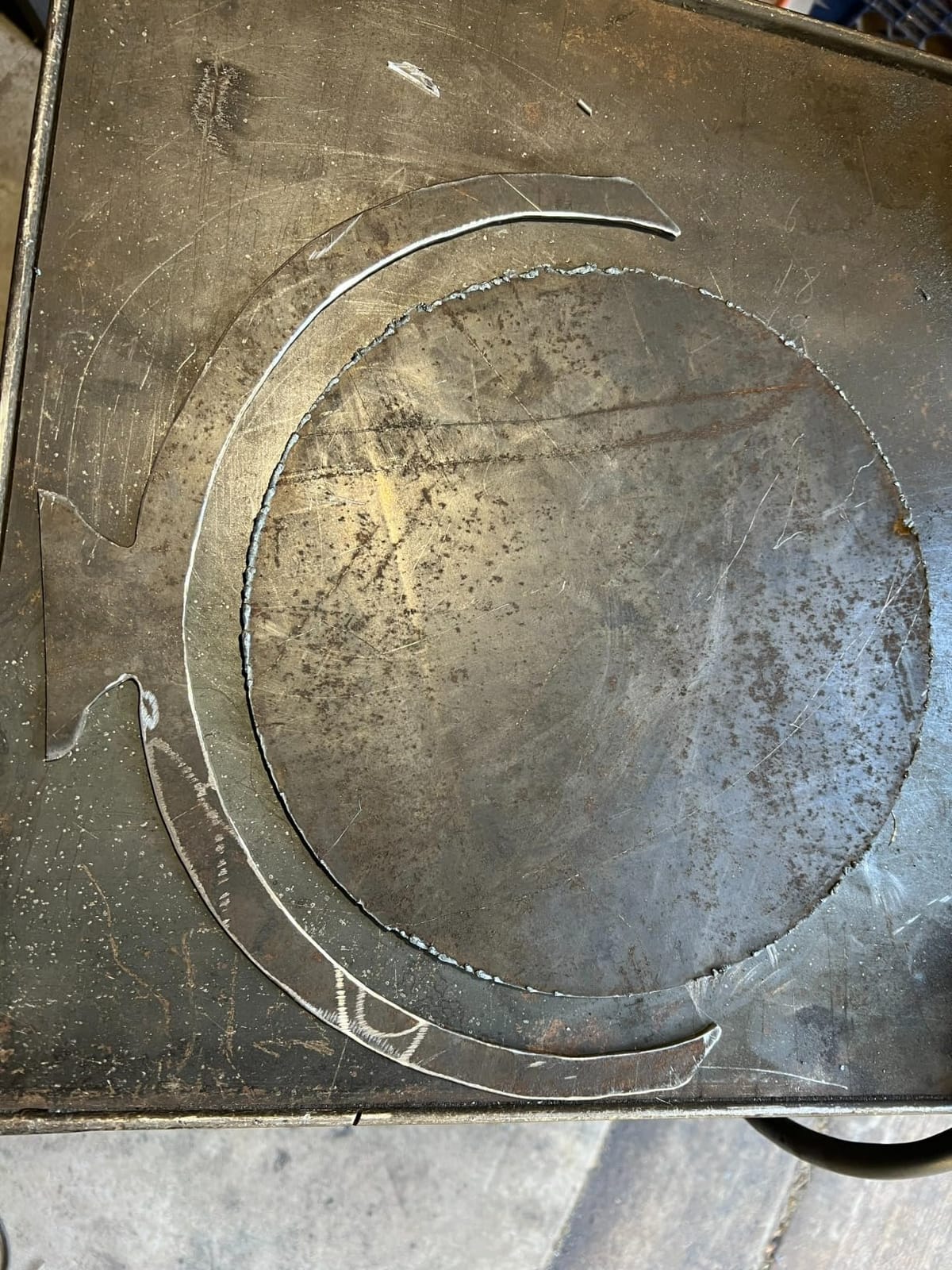

At 1/4 inch with settings turned down, owners report close to slag free cuts. Push it to half inch and it still performs. The automatic voltage sensing means you can move the same machine between a home garage circuit and a workshop outlet without rewiring anything inside the case.
A front mounted air regulator with a pre-fitted quarter inch Type-D plug is unusual in a machine at this level. Most competitors make you buy a separate filter and regulator before the first cut, and the fact that this one is already plumbed saves an afternoon.
Check the fittings before the first cut
The single most common complaint is physical rather than electrical: the ground lead is shorter than the torch lead and does not lock positively into the machine, and the air regulator fittings can leak until you add tape or sealant. Both are ten minute fixes on day one, and both are worth doing before the torch gets hot.
The 220V plug is a circular three prong pattern. If your shop outlets are standard NEMA, buy the adapter and a proper outlet before the machine arrives rather than after.
Where it falls short
Consumables for this torch cost more relative to the machine than almost anything else here, and the height guides are part of that. Budget for a set of tips and electrodes in your first order, because a first-time owner will burn through a nozzle while learning.
Documentation is sparse, so most owners learn from videos. A small number of machines needed a warranty replacement for a fading pilot arc, though long term owners commonly report a year or more of trouble free service.
3. YESWELDER 60A Non-HF: Best for Shops Full of Sensitive Electronics
YESWELDER 60A Non-HF Plasma Cutter, Non-Torch Pilot Arc, 110/220V
60 amps
5/8 inch clean cut at 220V
Non-high-frequency blowback start
ETL certified
Pros
- Non-HF start avoids electronics interference
- 63/64 inch maximum cut at 220V
- Digital readout of air pressure and current
- IPT40 non-touch pilot arc torch
- PT/2T/4T with adjustable post flow
Cons
- Non-HF torch still needs careful air pressure
- One year warranty only
Almost every budget plasma cutter uses a high frequency start, and almost every high frequency start puts a burst of radio noise into the shop. The YESWELDER uses a blowback ignition instead, which means it will sit next to a CNC controller, a garage door opener and a camera without any of them misbehaving.
That single decision is why we put a 60 amp machine in third place on a list otherwise built from 50 amp cutters. The clean cut figure of 5/8 inch at 220V and a maximum of 63/64 inch make it a genuine thick plate machine, and the blowback start protects everything else in the building.
The digital display gives you live air pressure, voltage and current plus fault codes. On a machine that does not have high frequency ignition, knowing your air pressure matters more, because the blowback arc needs the air in the right window to strike reliably.
The IPT40 torch is a non-touch pilot arc design, so it starts through rusted, painted and expanded metal without a contact touch. That is the difference between a machine you use on a trailer frame and one you only use on clean material cut at the bench.
How the 110V limit shows up in practice
At 110V the clean cut drops to 5/16 inch and the maximum to half inch. Those are not bad numbers, they are 110V numbers, and the difference between the two settings is exactly the argument for spending money on a 220V circuit before you spend money on the machine.
Forum users running a 50 or 60 amp machine on 240V consistently report cutting more plate per hour than the same machine on 120V, and the drop is larger than the input voltage ratio suggests because arc voltage stays constant while current falls.
Where it falls short
The blowback torch still requires careful air pressure control for reliable ignition. If your compressor cannot hold pressure, this machine will complain about it more directly than a high frequency start would.
The one year warranty is among the shortest terms here, and it is the main reason this machine does not sit higher in the list despite strong specs. Buyers running production work should weigh that against the electronics savings.
4. ARCCAPTAIN iControl CUT55 Pro: App Control and a Three Year Warranty
ARCCAPTAIN iControl CUT55 Pro Plasma Cutter Machine, 55Amp, 120V/240V
55 amps
12mm quality cut
20mm max severance
3 year warranty
Pros
- App control for remote parameter changes
- Intelligent post blow scales with current
- Half inch clean and three quarter inch max
- Three year warranty
- ANSI certified
- Quieter smart fan cooling
Cons
- Heavier at 19.46 lbs than most portable units
- App control adds a software dependency
This machine takes a 55 amp current and turns it into a 12mm quality cut with a 20mm maximum, which puts it level with machines rated several amps higher. The high frequency non-touch pilot arc starts through rust, dirt and coatings, and the pre-installed filter and regulator mean it is ready to cut out of the box.
The distinguishing feature is the app. You can stand at the far side of a plate, a trailer frame or a large sculpture and change amperage, air pressure and post-flow timing from up to ten meters away, then save the setting as a profile you reuse for the same material again.
The intelligent post-blow is the part that matters most on thick steel. Rather than a fixed cooldown, it scales with cutting current, so the electrode stays protected on a long cut at full output and the consumable life improves without you adjusting anything.
Cooling is handled by a smart fan and an upgraded cooling system, which reviewers say cuts noise significantly compared with a continuously running fan. The package also includes a 10 ft AG60 torch, 10 ft air hose, 10 ft earth clamp and a 120/240V adapter.
Is app control a real advantage on a shop floor?
On long profile cuts and on work where you need to see the kerf rather than the torch, yes. It removes the walk back to the machine for every parameter change, and saved profiles stop you re-dialing a setting you already know works on 3/8 inch plate.
The counterargument is dependency. If the companion application is the only way to reach some settings, a phone or tablet problem becomes a machine problem. Check that the essential amperage and air controls are also available on the front panel before you commit.
Where it falls short
At 19.46 lbs it is one of the heavier portable machines in this group, roughly six pounds more than the 13 lb ARCCAPTAIN 50A. If you are carrying it into a field or onto a roof, that difference is real.
High frequency start is also a consideration if the machine will share a bench with a CNC table, an inverter charger or anything with a sensitive display. The listing does not publish an air flow figure for this machine, so check the manual and size the compressor from there.

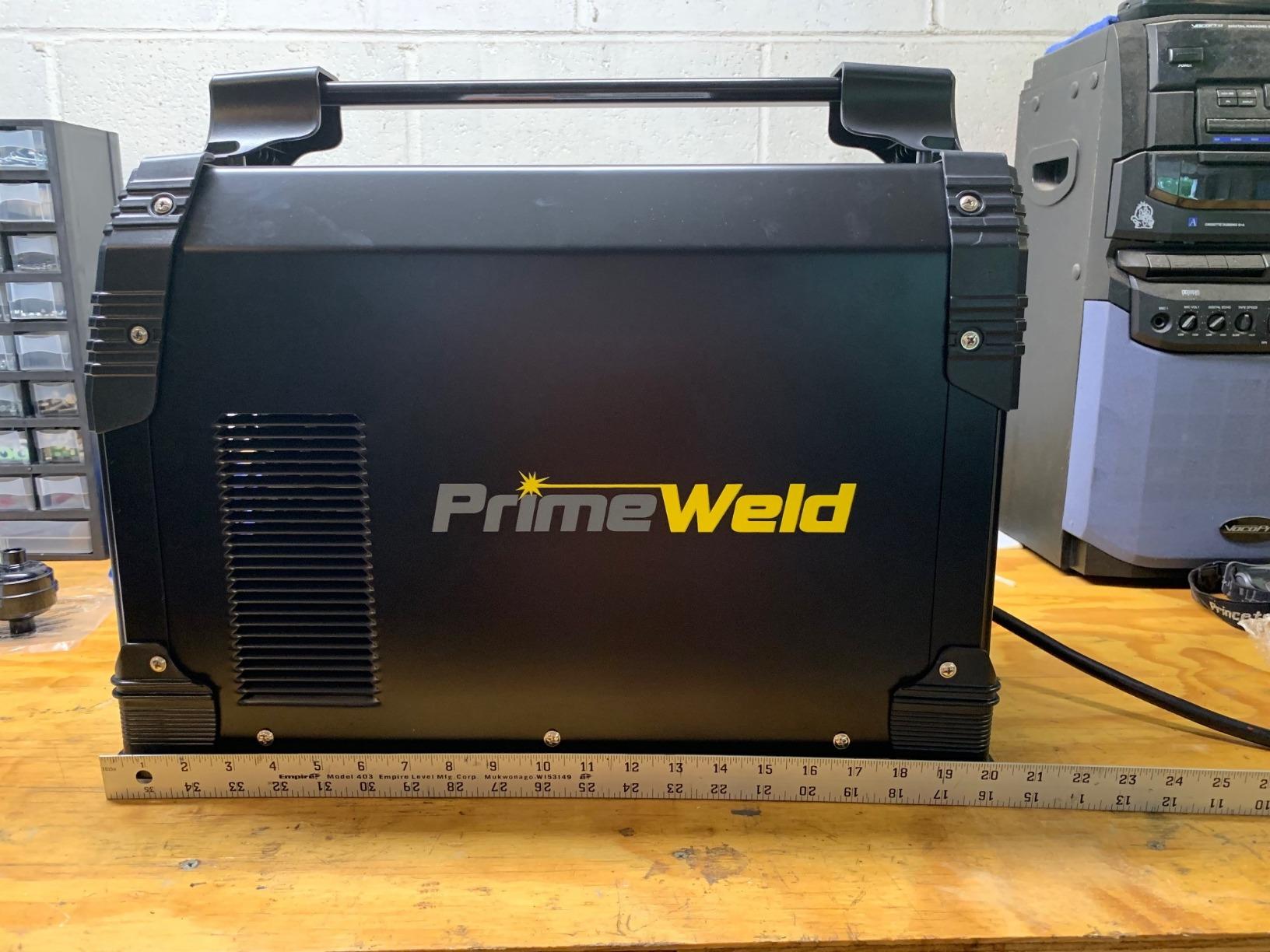

5. PRIMEWELD CUT60: The Highest Rated Machine in the Lineup

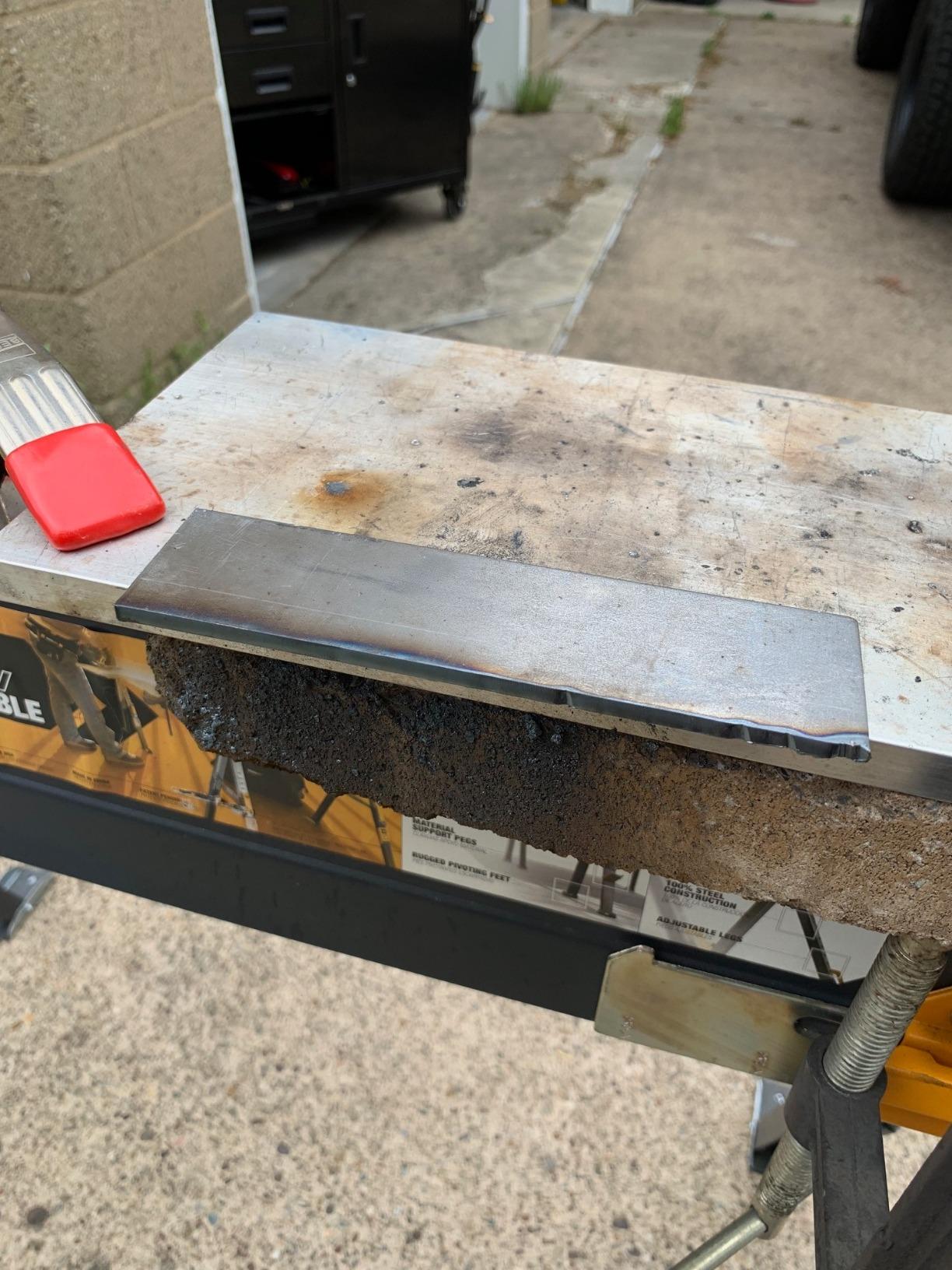

PRIMEWELD CUT60 60Amp Non-Touch Pilot Arc PT60 Torch Plasma Cutter 110V/220V Dual Voltage 3 Year Warranty
60 amps
60 percent duty cycle
PT60 blowback torch
Euro central connection
Pros
- 4.8 average across 486 reviews
- Continuous pilot arc for dirty and expanded metal
- Euro central torch connection
- 60 percent duty cycle at full output
- Three year warranty with US support
Cons
- Costs several times more than entry level 50 and 60A machines
At 4.8 average across 486 reviews, with 86 percent five star ratings, this machine holds the highest average score of the twelve we compared. Reviewers credit the continuous pilot arc, the pro grade Euro torch connection and a 60 percent duty cycle that holds up under sustained cutting rather than tapering after a few minutes.
The PT60 is a blowback torch with a Euro central connection. That connection standard is a genuine shop feature: it means consumables from other Euro torch machines often interchange, so you are not locked into one brand for electrodes and nozzles.
Continuous non-touch pilot arc handles expanded, rusted and painted metal without contact, which is the property that matters most when you are working on a reclaimed trailer frame or a grader blade someone left outside for a decade.
Dual voltage operation comes with an adapter in the box, so the machine moves between a 110V garage outlet and a 220V workshop circuit. The three year warranty is backed by US based support, which matters more than the paperwork suggests when a machine needs a part.
When the extra spend makes sense
The premium over a 50 amp budget machine is real, so it needs a reason. If you cut plate every week, if a warranty claim means shipping a machine across the country, or if you want consumable interchange with the rest of a professional shop, the arithmetic works out in your favour over a year of use.
If you cut a few pieces a year for a hobby trailer, it is overkill. A 60 amp machine in a cheaper chassis leaves the same plate on the ground and puts the difference toward consumables and air supply.
Where it falls short
Cost is the obvious limitation, and it is the only limitation reviewers raise with any consistency. There is no meaningful complaint about cut quality, pilot arc reliability or duty cycle performance in this review set.
Weight is not listed in the specifications, so if portability matters to you, confirm the shipped weight before committing. Nothing else here gives us pause.

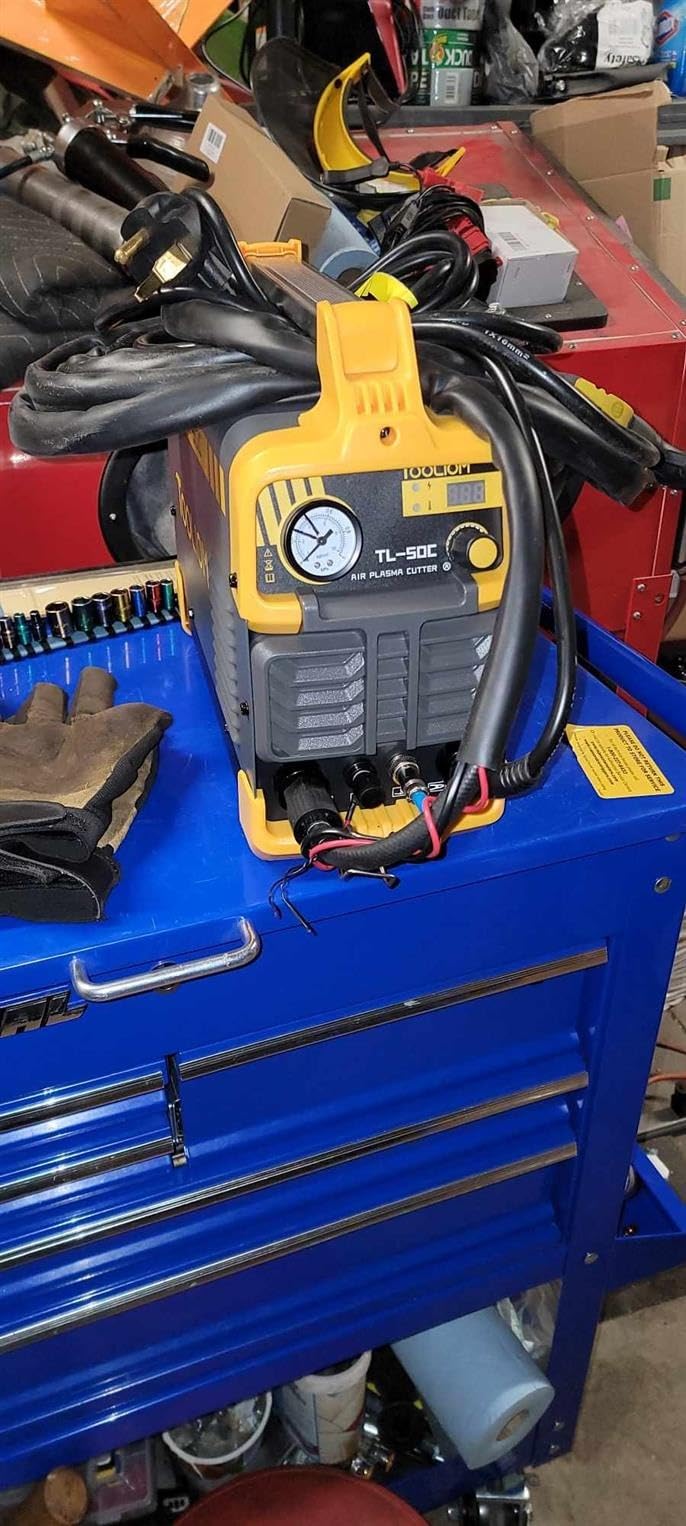

6. TOOLIOM CUT-50 PRO: Entry Machine with a Generous 220V Rating

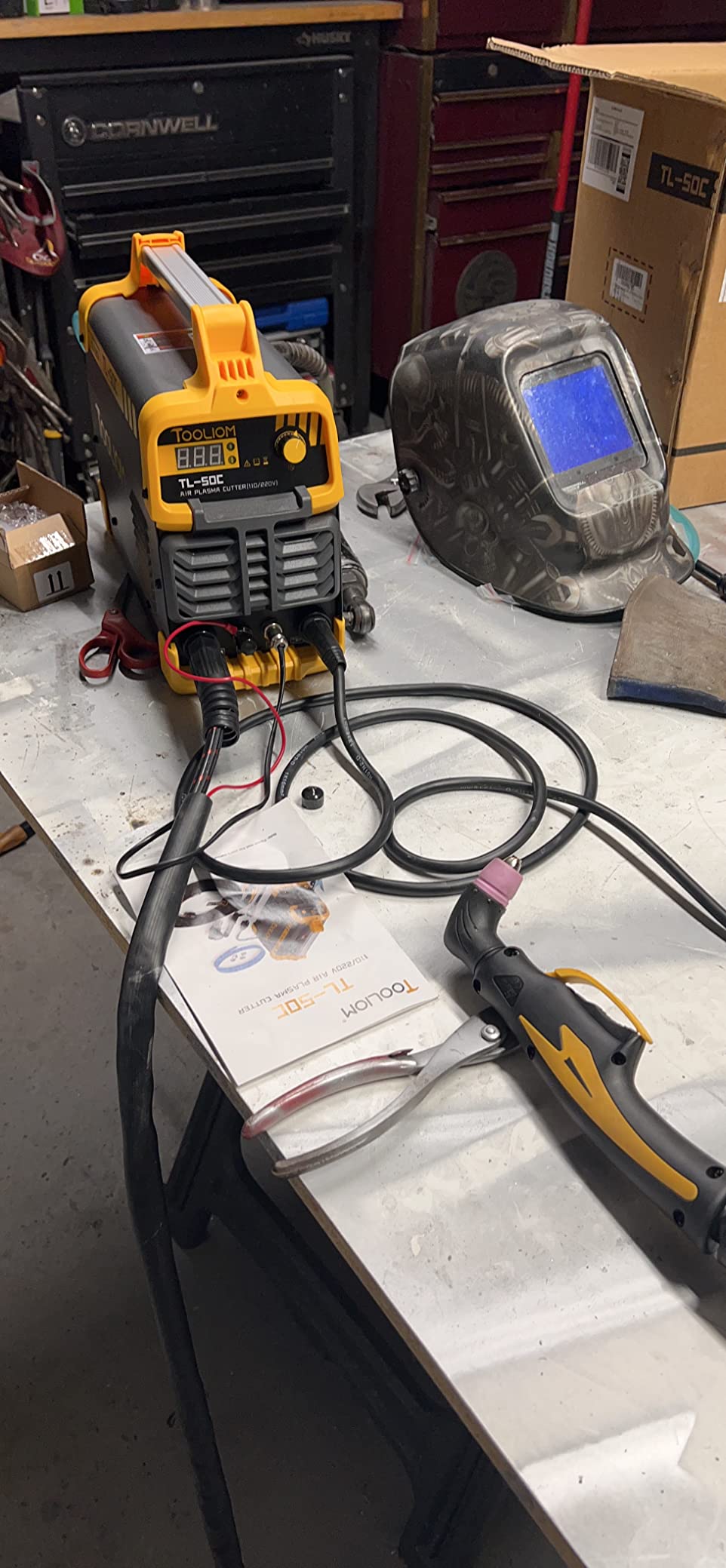

TOOLIOM 50A Non-Touch Pilot Arc Plasma Cutter, Dual Voltage 110/220V
50 amps
5/8 inch clean cut at 220V
AG60 non-touch torch
13.23 lb
Pros
- Non-touch AG60 torch extends consumable life
- 5/8 inch clean and three quarter inch max at 220V
- Digital display for air pressure and current
- Tool free voltage switching
- Light portable chassis
Cons
- 4.1 average rating with a 12 percent one-star share
- Listed weight conflicts with the 13.23 lb claim
- Air flow continues for 5 to 20 seconds after each cut
- Package lists only the machine
The spec sheet here is better than the rating suggests. A 5/8 inch ideal clean cut and a 3/4 inch maximum cut at 220V would put this machine near the top of the 50 amp group on paper, and the AG60 non-touch pilot arc torch is a genuinely good consumable platform.
Tool free 110V/220V connection means no case opening and no relinking when you move between circuits. The large digital display shows air pressure, voltage and current in real time, and the post cut air flow is adjustable from 5 to 20 seconds for consumable cooling.
On paper this is a strong spec set for a 50 amp machine. Twenty to 50 amp output range, 50 PSI maximum at 110V and 65 PSI at 220V, and a listed machine weight of 13.23 lb put it in the same portability class as machines with longer warranty terms.
The 2T/4T and post flow controls are what keep the electrode alive on repetitive work, and reviewers who run it daily point to the pilot arc torch as the main reason consumables last longer than on a contact start machine.
Read the specification conflict before you order
The listing carries two different weights, 21.6 lb and 13.23 lb, and we could not reconcile them from the source data. If you plan to carry the machine, measure or confirm the real figure with the seller rather than trusting either number.
The included components list also names only the plasma cutter itself. Assume you are buying a torch, ground clamp, air filter and a set of consumables separately, and budget for that on day one.
Where it falls short
At 4.1 average with a 12 percent one-star share, this machine carries a heavier concentration of critical reviews than the other 50 amp machines here. That makes it a sensible entry machine rather than a choice for eight hours a day in a production shop.
Maximum air pressure is capped at 65 PSI on the 220V setting. That is adequate for half inch plate, but for thicker work or stainless you want more pressure headroom than this machine offers.
7. LOTOS CT520D: The 3-in-1 Bundle When Only One Machine Fits

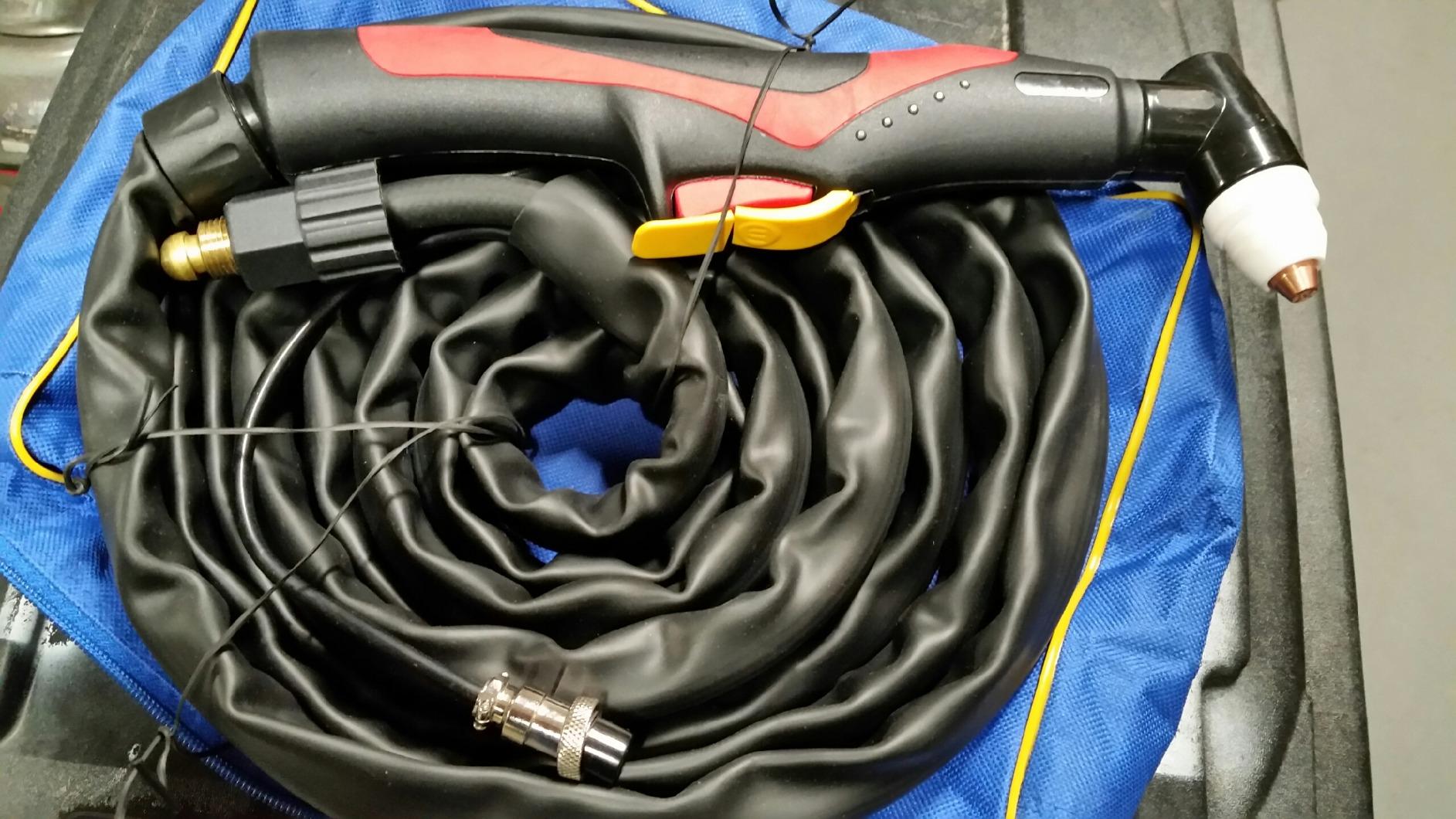

LOTOS CT520D 50 AMP Air Plasma Cutter, 200 AMP Tig and Stick/MMA/ARC Welder 3 in 1 Combo Welding Machine, 5/8 Inch Clean Cut, Brown
50 amp plasma
200A TIG
200A stick
5/8 inch clean cut
33.1 lb
Pros
- Three processes in one chassis
- 5/8 inch clean and three quarter inch severance
- PC board adds cutting power over a standard 50A
- Air filter regulator pre-installed
- TIG section handles thin gauge work
Cons
- 33.1 lb chassis is not portable
- Foot pedal and argon regulator not included
- Processes cannot run simultaneously

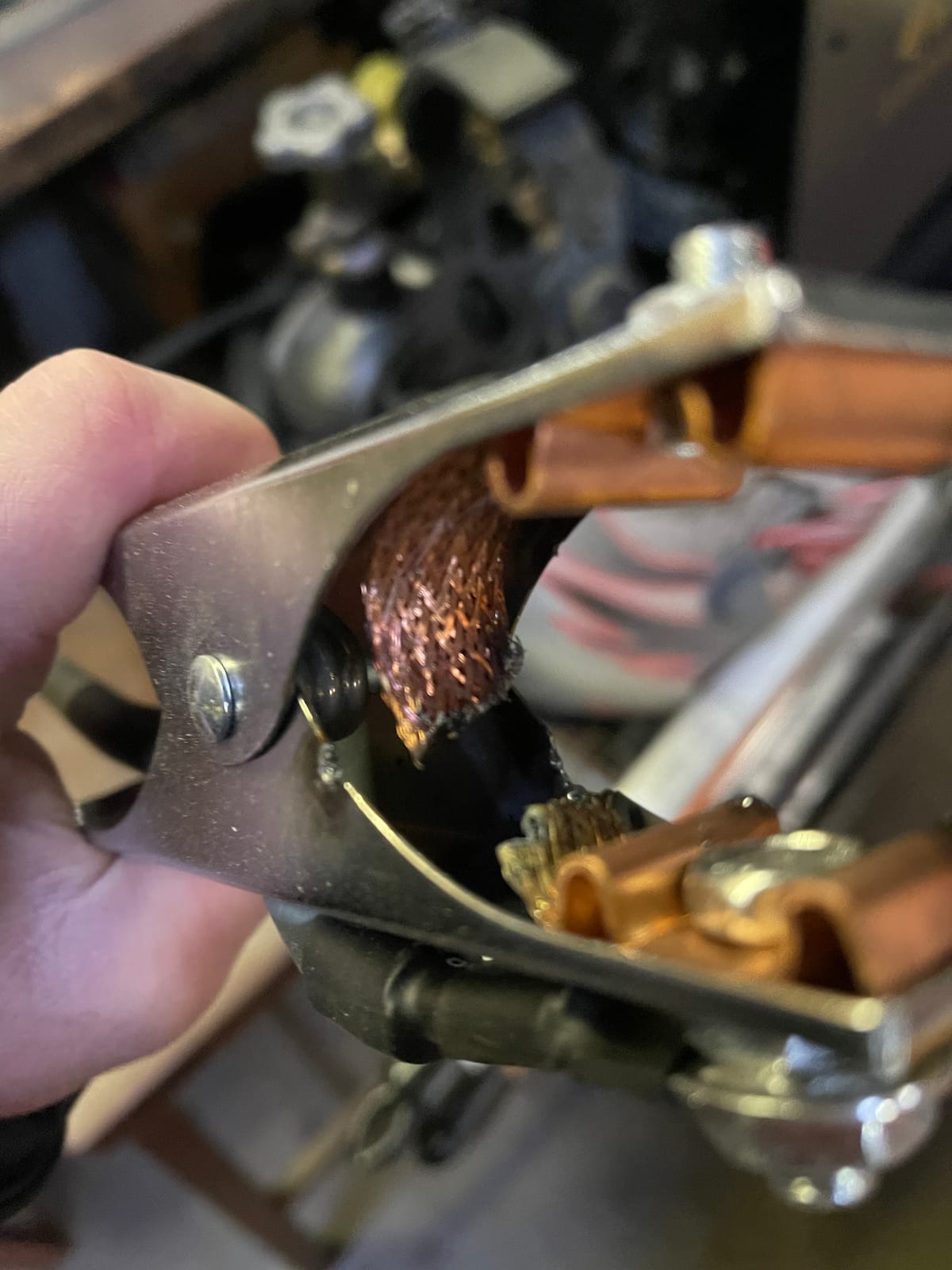

This is a different kind of answer. The plasma section delivers 50 amps with a 5/8 inch clean cut and 3/4 inch severance, and the same chassis carries a 200A DC TIG section with hand torch control and a 200A stick section with adjustable hot striking arc current. The plasma section is the piece that gets the job done on plate, and the other two cover everything around it.
For a garage or a small fabrication shop where only one machine can be stored or powered, that is a genuinely strong proposition. The box includes a power supply, plasma torch, TIG torch, stick holder, ground clamp, a pre-installed quarter inch Type-D plug with air filter regulator, consumables and a manual.
Reviewers treat it as a bundle rather than a single-purpose cutter. The TIG section handles thin gauge stainless and the stick section covers structural fillet work, which between them cover most garage welding tasks without a second machine on the bench.
An upgraded PC board is credited with roughly 25 percent more cutting power than a standard 50 amp design, which is why the clean cut figure reaches 5/8 inch rather than the 1/2 inch typical of the class.
When a multi-process unit makes sense
It makes sense when your work spans all three processes at moderate thickness, when floor space is tight, and when you are building one machine rather than three. Buyers restoring a vehicle or building a trailer frame hit all three conditions.
It makes less sense the moment thick plate becomes the priority. Because the processes share a power source, the plasma section is sized for a general purpose machine rather than a production plate cutter.
Where it falls short
The body measures 17 by 8 by 11 inches. At 33.1 lb this is a two person lift over distance, so it belongs in a shop rather than on a job site.
The TIG foot pedal and argon regulator are not included, and multi-function units split power between processes, so you cannot run plasma and TIG at the same time. Add those accessories to your cost before comparing it against a dedicated cutter.
8. SILATU STC650P 65A: 65 Amps of Current in a Light Package

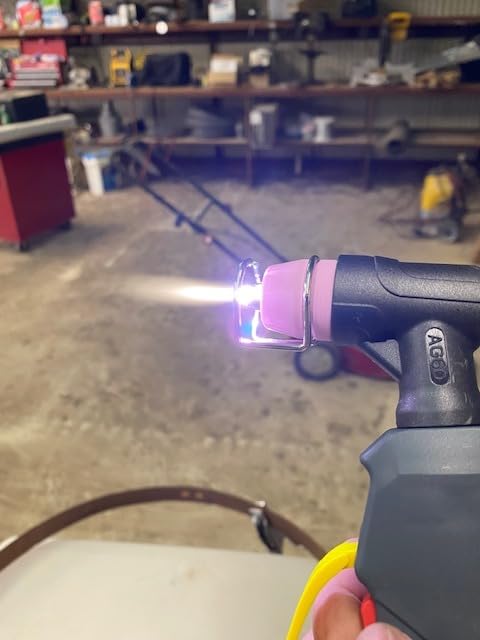

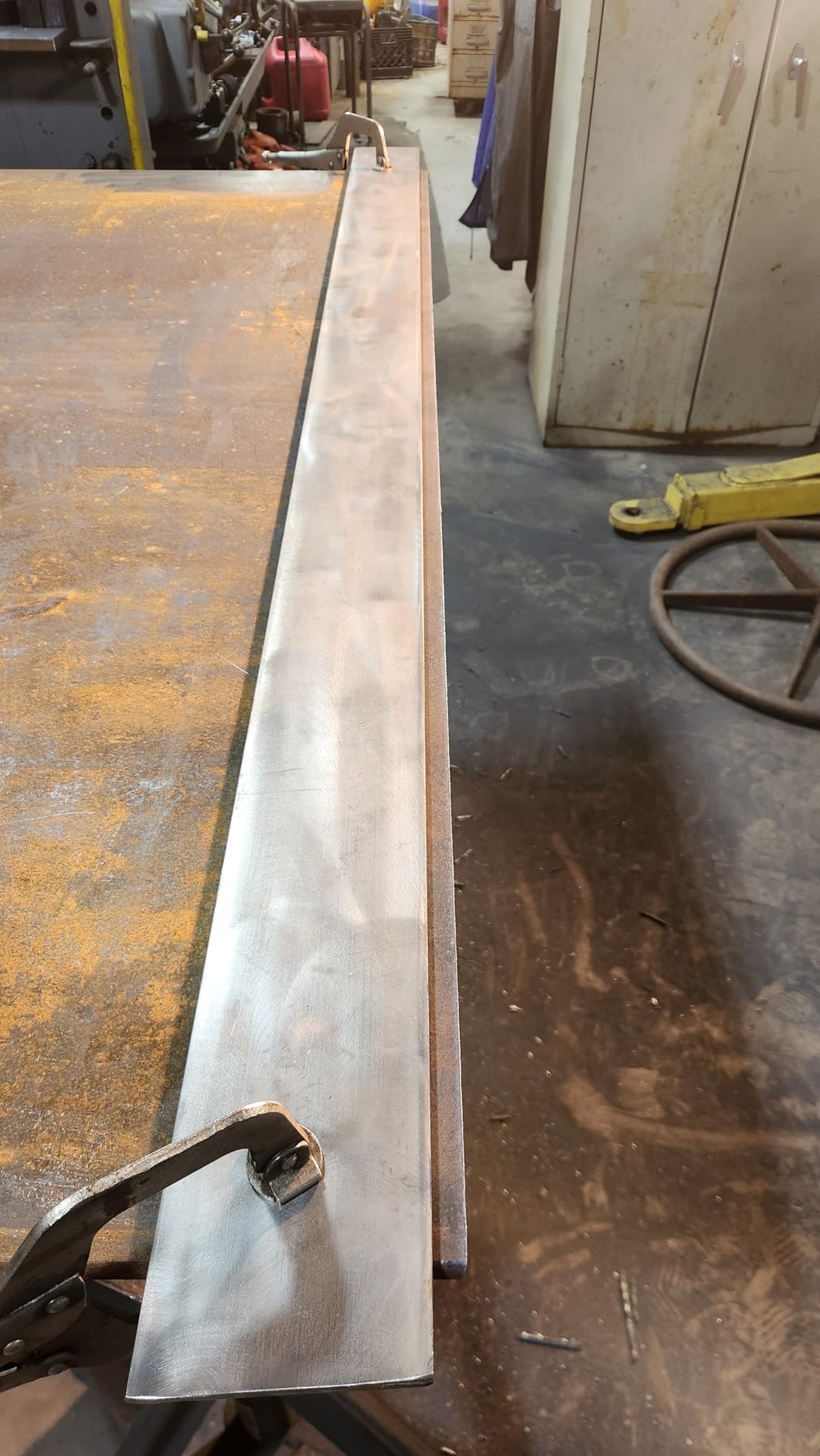

SILATU Plasma Cutter, 65A Non-Touch Pilot Arc, 110V/220V, 4/5” Max Cut
65 amps
20mm max cut
12mm at 40A/110V
13.45 lb
Pros
- 65 amps of current with a 20mm maximum cut
- Adjustable pilot arc duration
- PT/2T/4T modes with 3 to 15 second post time
- Built in air sensor and internal filter
- Light at 13.45 lb with 13 ft torch lead
Cons
- Needs a dedicated 40A or higher circuit
- Air pressure set manually with no auto adjustment
- One year warranty
Sixty five amps in a 13.45 lb chassis gives you real headroom for heavy plate without a two person lift. The specification is 20mm maximum cut at 65A and 70 PSI on 220V, and 12mm at 40A on 110V, with a 60 percent duty cycle IGBT inverter underneath.
The adjustable pilot arc duration is the feature experienced users notice first. Extending the arc time lets the machine punch through expanded mesh and grid material, where a short pilot time stalls, and it also slows electrode burn on long cuts.
A built in air sensor displays pressure on the front panel, and the internal filter sits behind a quick connect quarter inch NPT fitting. The 13 ft AG60P torch lead gives you real working radius around a plate without dragging the machine into the cut.
PT, 2T, 4T and PA functions are all present, and post-flow time is adjustable from 3 to 15 seconds. The digital display covers pressure, voltage and current with fault codes, which is more instrumentation than most machines at this amperage.
The circuit requirement is not optional
The specification calls for a 40A or higher dedicated circuit breaker. Owners who skip this and plug into a shared circuit report trips, and the machine is rated for a compressor delivering 250 litres per minute at no more than 70 PSI.
That compressor figure is higher than most pancake compressors can hold. A small tank with a marginal pump is the single most common reason people report sputtering on this machine, and it is a supply problem rather than a cutter problem.
Where it falls short
Air pressure is set manually with no automatic compensation, so you are the one watching the gauge. On a shared compressor that means pausing to check pressure between cuts.
The warranty is one year, which is among the shortest terms for a 60 or 65 amp machine. The 65 amp claim is also nominal: a clean cut in the 5/8 to 3/4 inch band still needs technique and steady travel speed.

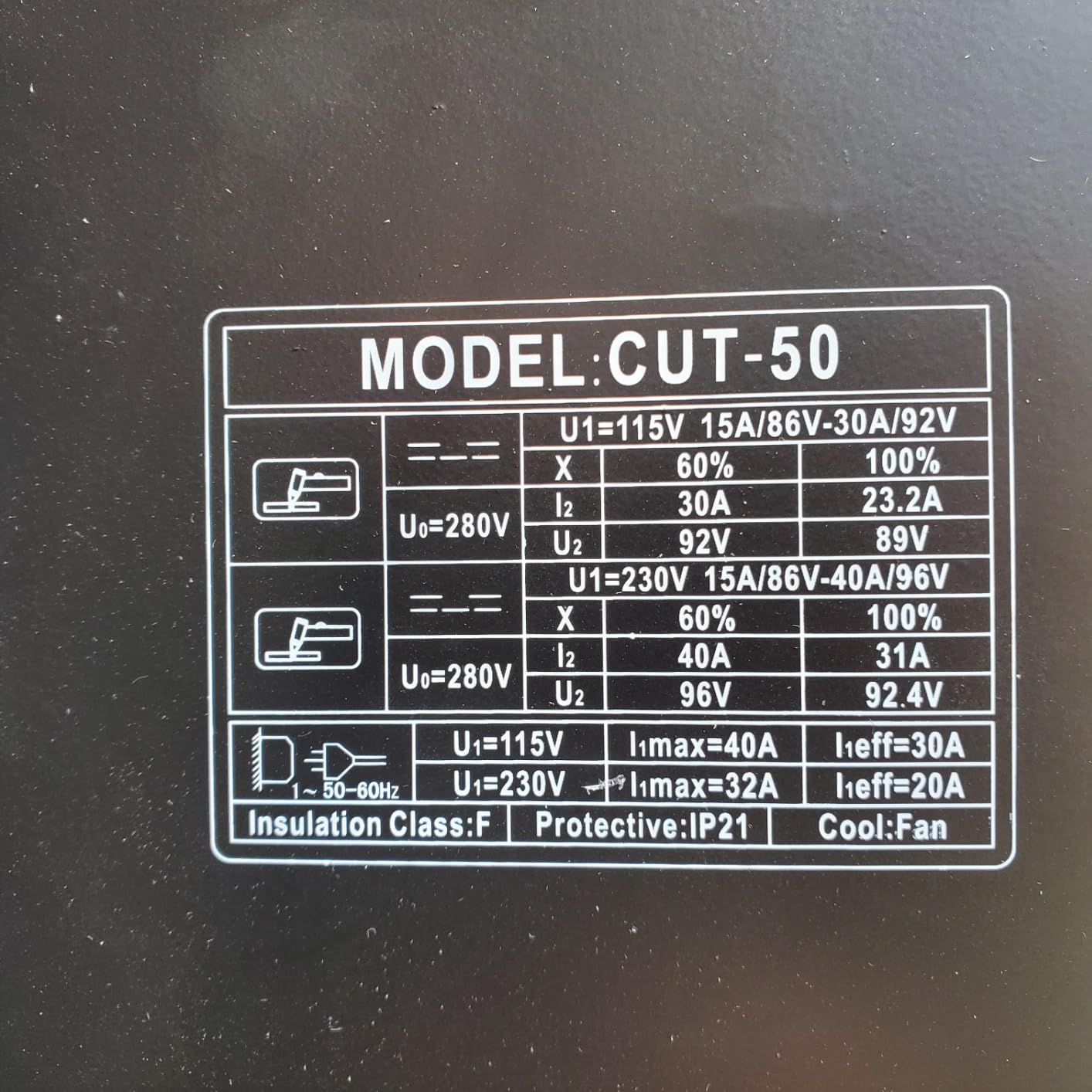

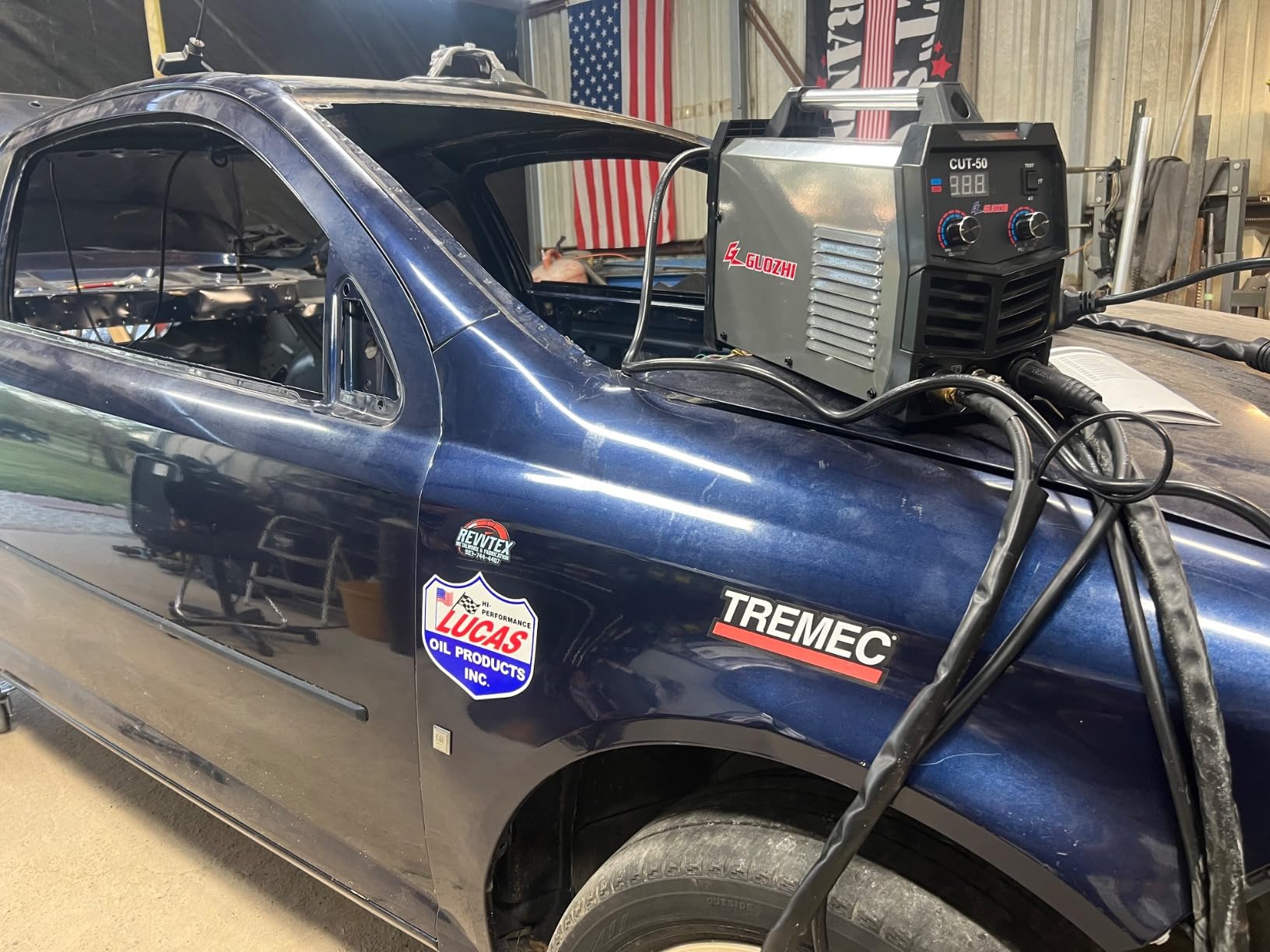

9. GZ GUOZHI CUT-50: Rated for Cold Shops and Light Circuits
GZ GUOZHI Plasma Cutter, 50 Amp Air Inverter Plasma Cut, 110V/220V Dual Voltage Digital Display IGBT Inverter Plasma Cutting Machine with 2T/4T/TEST Function
50 amps
12mm at 35A/110V
20mm at 50A/220V
60 percent duty cycle
Pros
- Pilot arc cuts rough painted and rusty metal
- Entry level 50 amp IGBT build
- TEST function speeds up setup
- Compact machine body
- Quarter inch Type D plug for quick setup
Cons
- One star share among the higher in the group
- Listed weight conflicts with the 13 lb claim
- One year manufacturer warranty
- Consumables not listed as included
The GZ GUOZHI is one of the lower-cost 50 amp dual voltage IGBT machines in this comparison, and the specification is respectable: 12mm recommended cut at 35A on 110V, 20mm maximum at 50A on 220V, 60 percent duty cycle and 50/60Hz high frequency output.
The TEST function is unusually useful for a first time buyer. It fires the arc without engaging the full cut cycle, which lets you find your amperage and air pressure settings without burning through a nozzle learning them.
What makes it unusual is the temperature rating. The machine is specified to operate down to minus 20 degrees, which matters for anyone cutting outside in winter or working out of an unheated farm building or truck shop.
Overheat and overcurrent protection are both present, and the breaker requirement is listed as up to 40A at 110V and 30A at 220V, which is a lower circuit demand than several competitors in this output class.
What the 2T, 4T and TEST modes change
Two time is a short arc that you control with the torch switch, suitable for most hand cutting. Four time latches the arc on for longer pierces and gouging. TEST is the setup mode. Having all three on a machine at this level removes the most common beginner mistake, which is piercing at too high an amperage and splashing metal back at themselves.
Pilot arc start handles rough, painted and rusty surfaces with minimal slag, which is the feature that makes a budget machine usable on real jobs rather than only on clean material.
Where it falls short
Like several machines here, the listed weight of 19.31 lb conflicts with the 13 lb figure in the product description. Treat the compact body claim as unverified until you confirm it with the seller.
Reliability outliers are the recurring complaint, and the one year manufacturer warranty is short. Consumables are not listed among the included accessories, so add a set to your first order.

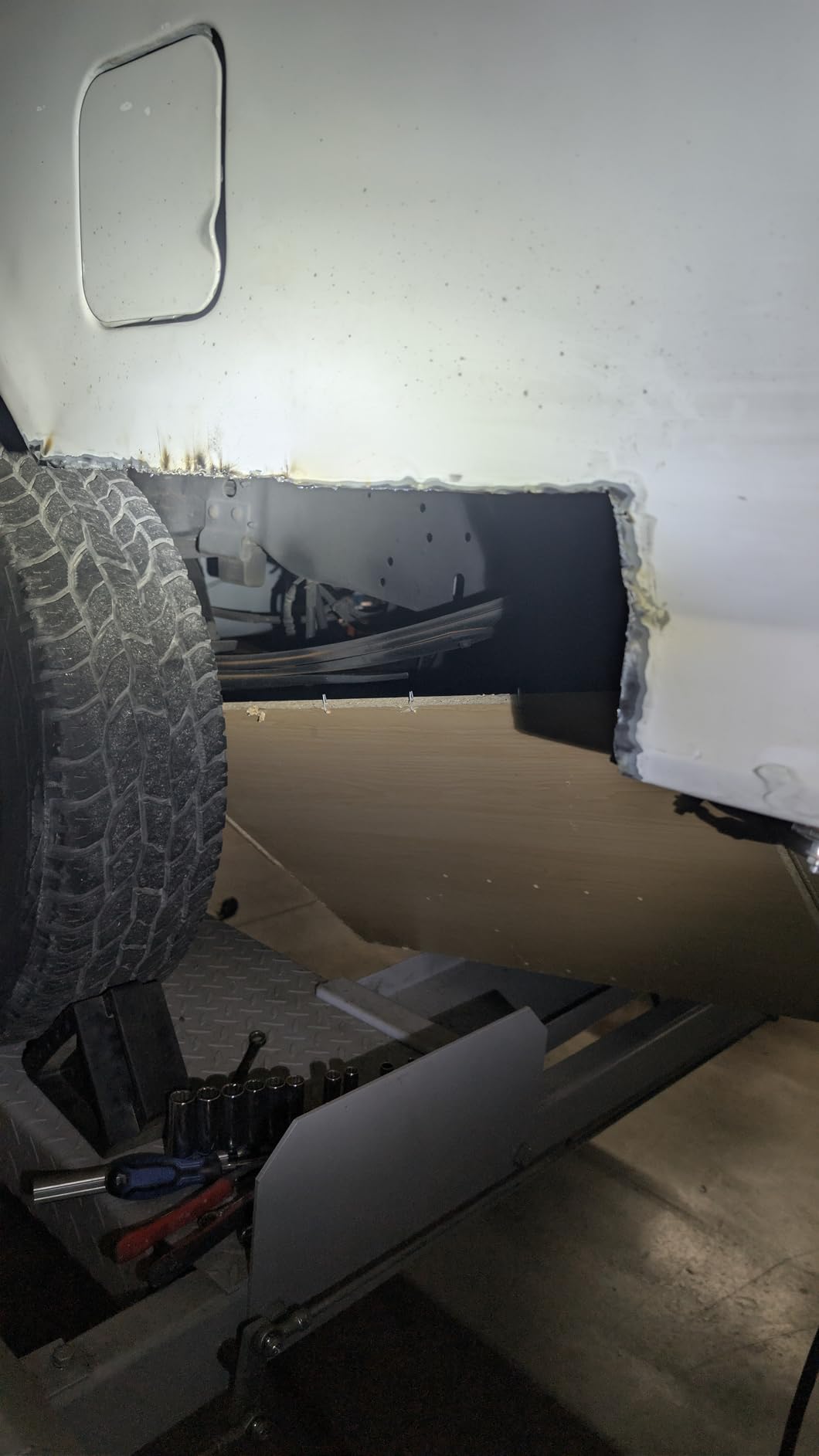

10. Reboot RBC6000D 60A: A Light Machine That Also Runs on 120V
Reboot 60A Plasma Cutter Dual Voltage 120V/240V, 1/2″ Clean Cut IGBT Inverter, Portable Metal Cutting Machine with Torch & Tips – RBC6000D 2025 Upgraded (Pre-Installed Air Regulator)
60 amps
1/2 inch cut at 120V
5/8 inch at 240V
8.69 lb machine
Pros
- Very light machine body for the output class
- 5/8 inch cut at 240V
- Beginner friendly controls with PSI guidance
- Pre-installed air regulator
- Extra tips included for beginners
Cons
- Several reports of early failure
- Touch arc start has no lift and sticks on contact
- Roller guide reported slipping out of position
- Warranty service puts return cost on the buyer
- 120V operation trips circuits above roughly 18

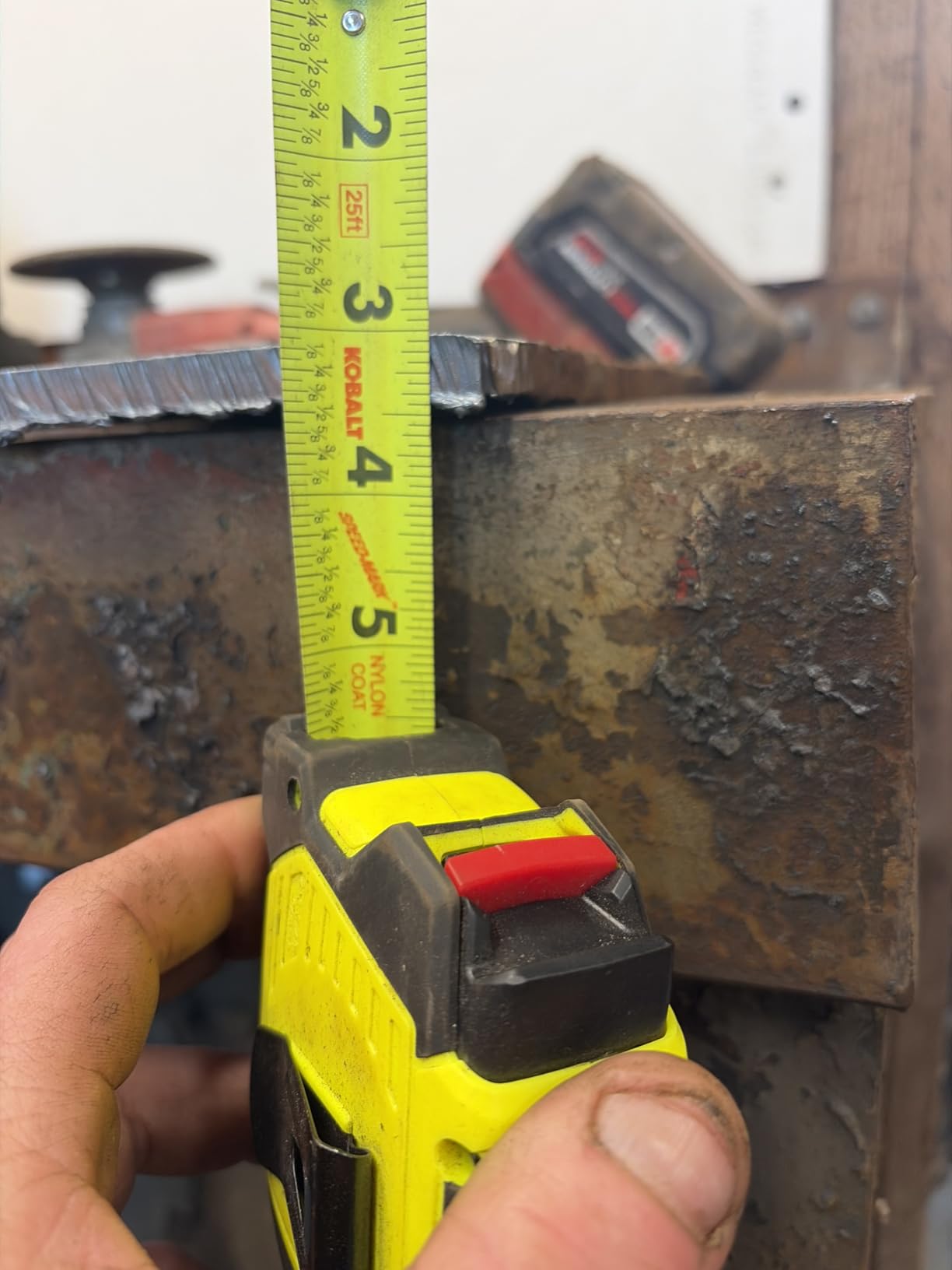

The RBC6000D claims a 12mm steel cut at 120V and 35 amps, and a 16mm cut at 240V and 60 amps, with auto-detecting dual voltage running 10-35A on the low setting and 30-60A on the high one. On paper that is a 60 amp machine doing the work of a 50 amp unit.
It is also among the easiest machines here to move. The stated machine weight is 8.69 lb in a compact 11.73 by 4.37 by 8.86 inch footprint, and the PT31 torch with spare tips plus a pre-installed air regulator mean a beginner can get a first cut within an hour of opening the box.
Operating air pressure is specified at 70-75 PSI with 60 litres per minute or above, and the breaker requirement is 50A at 120V or 40A at 240V.
That 120V breaker figure is tied for the highest demand listed for any machine in this comparison at that voltage.
It is listed for steel, stainless steel, aluminium and copper, so a mixed material shop is covered by one machine. US based service support is a plus for buyers who want a person on the other end of the warranty.
Touch arc and what it costs you
This is a touch arc torch, which means you drag the tip to initiate the cut. The tip stays in physical contact with the workpiece, so on thick plate it heats up, sticks and can crater the kerf edge. It also burns the electrode faster than a non-touch pilot arc, which is why it struggles on expanded metal.
Several users also report the roller guide slipping out of position, which matters if you rely on it to keep a consistent standoff. Check it before every long cut rather than once at the start of a job.
Where it falls short
Reliability is the significant issue. Several buyers report machines failing within weeks, including one that stopped powering on after a single use, and the warranty process puts the cost of getting the machine back on the buyer. Forum consensus in this category is to buy from a seller with easy returns for exactly this reason.
At 120V the machine draws enough to trip household circuits once you push past the lower settings. Treat the 120V side as light duty and move to 240V for real plate work.
11. FLARING FC650D 65A: Strong Output and a 14 Piece Consumable Kit
FLARING Plasma Cutter,65 Amp Plasma Cutter Machine 120V 240V 4/5″ (20mm) Max Cutting 1/2″ (12.7mm) Clean Cut IGBT High Frequency Inverter Touch ARC Plasma Cutter with Consumable Set Update 5th FC650D
65 amps
4/5 inch max severance
1/2 inch clean cut
8.4 lb
Pros
- 65 amp output with 1/2 inch clean cut
- Very light at 8.4 lb for a 65A machine
- Automatic 120V/240V without relinking
- 14 piece consumable set included
- Automatic arc control on expanded metal
Cons
- 14 percent one-star share
- Several reports of machines failing within minutes
- Touch arc requires dragging the tip
- Some packages missing the advertised torch
- 60 percent duty cycle only
The FC650D is one of the least expensive routes to 65 amps in this list, and it comes with a 3 metre PT31 torch, an air regulator and hose, a ground clamp with a 10-25mm connector and 14 pieces of additional consumable parts. Having a full spare set in the box is genuinely useful for a first cut.
Automatic dual voltage operation means you do not open the case and relink anything to move from 120V to 240V. The breaker requirement is 50A at 120V and 30A at 240V, and the machine cuts aluminium, brass, stainless, cast iron, copper, titanium and steel.
Automatic arc control is aimed squarely at expanded metal, where the arc has to follow a grid rather than solid material. It reduces the hand fatigue that normally comes from modulating the trigger cut by cut, and reviewers who cut grating rate that feature well.
The machine weight is listed at 8.4 lb with a 14 lb package weight, which makes it a genuinely easy 65 amp machine to carry. Carrying it to a job and back is unremarkable.
What 60 percent duty cycle means here
A 60 percent duty cycle at 60 amps means roughly six minutes of full output in every ten, then a cooldown period. On a farm repair or a trailer build that is more than enough. On a production job cutting plate all day, you are choosing a machine you will pause rather than one you can leave running.
Because of that ceiling, this machine is a strong first plate cutter rather than a production investment, and the consumables kit makes the transition to thicker work less painful.
Where it falls short
The 14 percent one-star share is the heaviest of the twelve machines compared here. Several buyers describe a pop and shutdown within the first ten minutes of use, apparently from board overheating on 110V. That is a real pattern, not a handful of isolated complaints.
Touch arc start requires dragging the tip, and a few buyers report the package did not include the advertised upgraded torch. If you order this, verify the box contents on arrival while the return window is open.

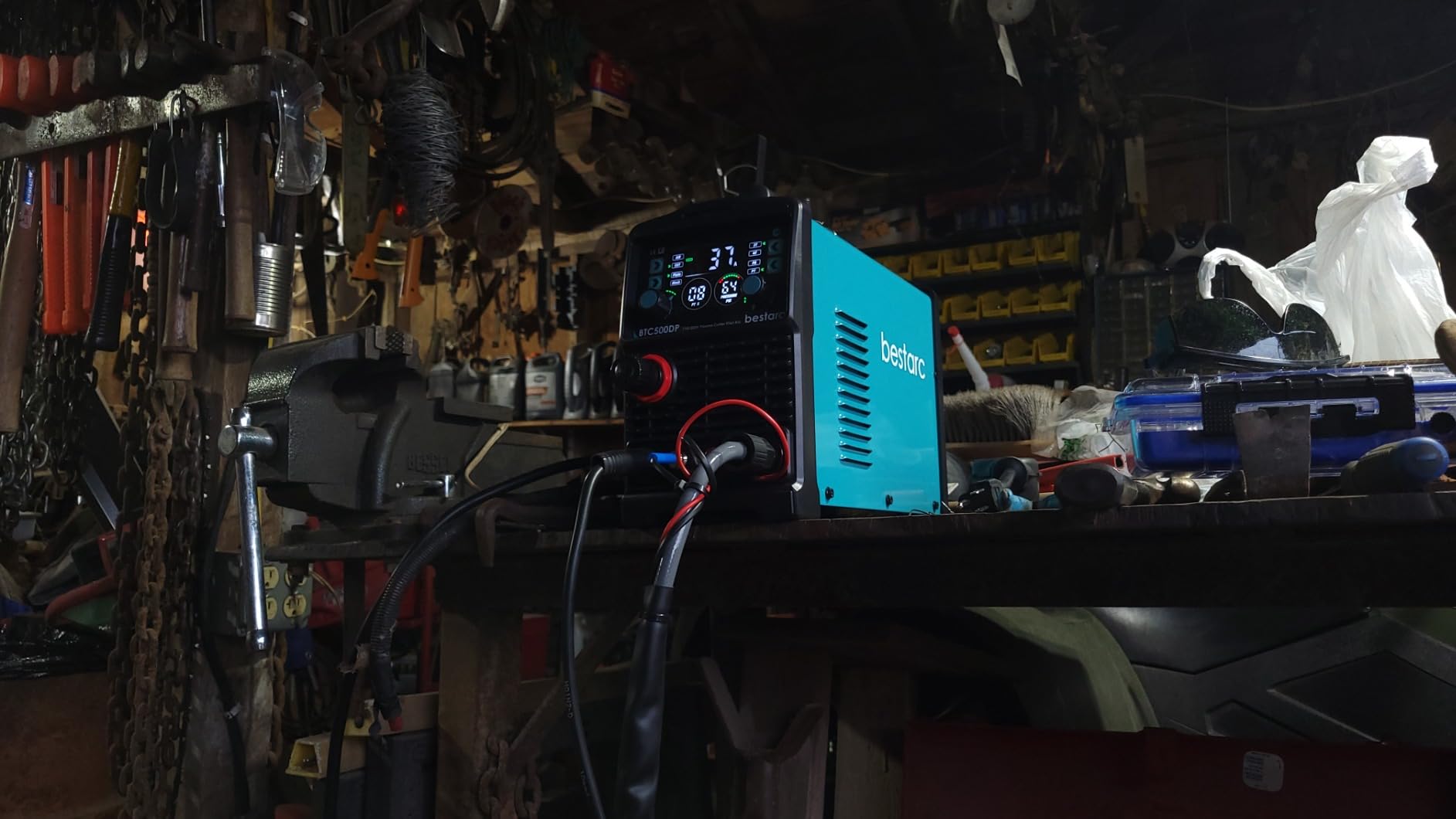

12. Bestarc BTC500DP 50A: The Stainless and Expanded Metal Performer
Bestarc 50A Pilot Arc Plasma Cutter, 110/220V, LED Display, Air Sensor
50 amps
2/3 inch max at 220V
12mm at 35A/110V
Built-in regulator
Pros
- Pilot arc starts without touching dirty material
- Fast clean cuts on quarter inch stainless
- Compact and cutting within an hour of unboxing
- Reported around 100 cuts a day with tip holding up
- 2T/4T/PA/PT modes with 3 to 15s post time
- Built-in regulator and air sensor
Cons
- Only two spare tips and consumables sold separately
- Air hose lacks quick connect fittings
- Torch lead sheath can be cut by slag
- Power cord reported too short
- Reports of machines failing to power on with limited warranty support
The Bestarc runs 50 amps with a 12mm recommended cut on 110V and a 2/3 inch maximum at 220V, and it is one of the few machines in this group where experienced metalworkers call out quarter inch stainless as a strength. The high frequency non-touch pilot arc with adjustable duration is why.
A built-in air sensor shows air pressure on the front panel, and the recommended setting is within 65 PSI at 250 litres per minute. That visibility is what lets a first time owner dial in pressure instead of guessing, and it is the reason owners are cutting within an hour of unboxing.
Users running close to 100 cuts a day report the original tip still holding up, which says something about the post-flow timer and the consumable quality. The 2T/4T/PA/PT mode set with 3 to 15 second post time adjustment gives you control over both piercing and cooldown.

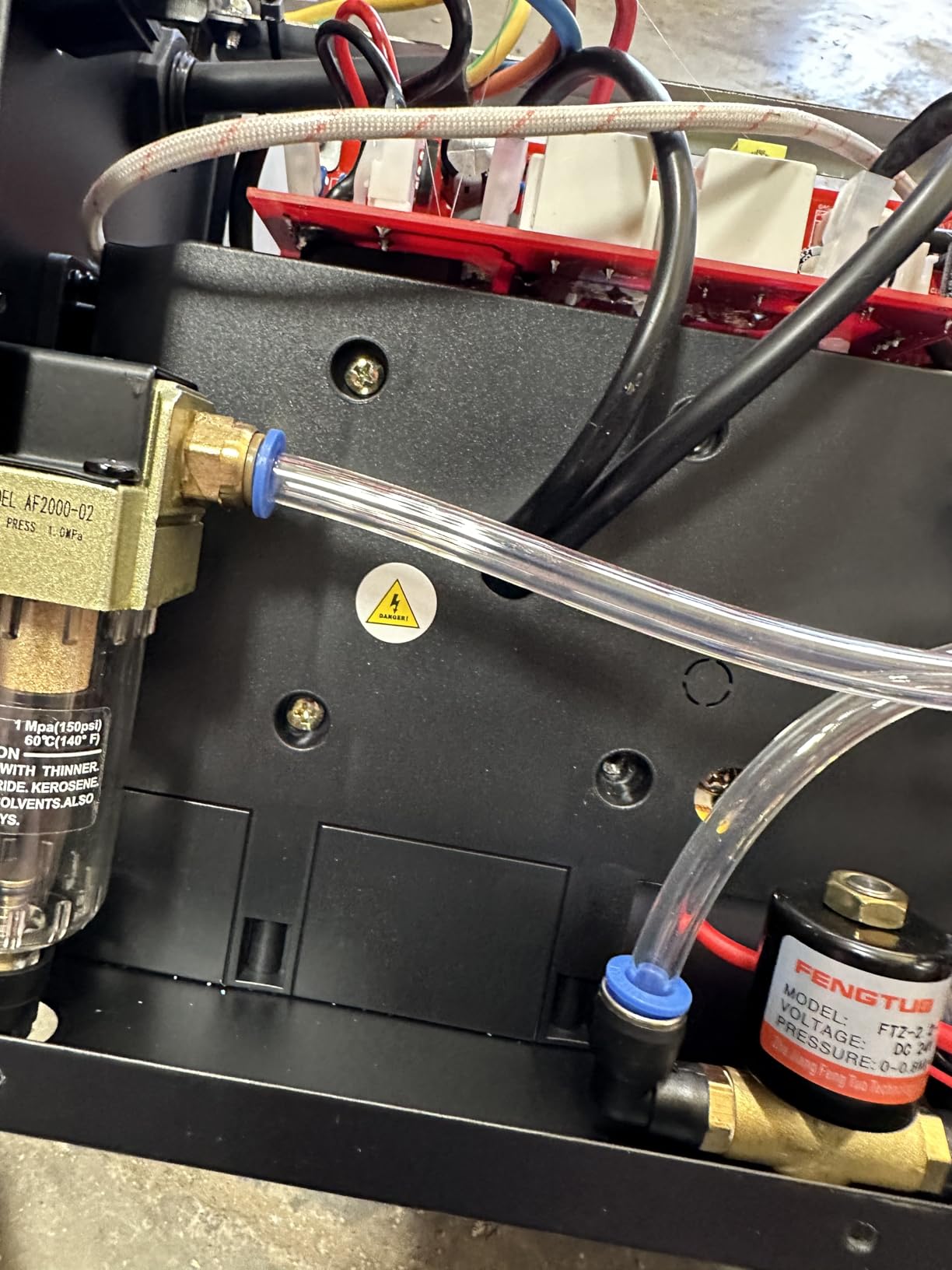

The internal air filter with a quarter inch NPT quick connect is combined with a built-in regulator, so the air path is complete before you plug in the compressor. The breaker requirement is up to 40A at 110V and 30A at 220V.
What adjustable pilot arc duration does for stainless
Stainless does not oxidise the way mild steel does, so the kerf fills with molten metal that has nowhere to go. A longer pilot arc duration keeps the arc alive while the plasma column establishes, which is the difference between a clean edge and a start-and-stop struggle on stainless or expanded material.
That same control is why the pilot arc is worth having at all on dirty material: you can start the arc above the workpiece, move it into the material once it is established, and avoid grinding rust and paint back before every cut.
Where it falls short
The physical parts are where this one loses points. Only two spare tips are included and the consumables are sold separately, the air hose has no quick-connect fittings, the torch lead sheath is thin enough that slag or a sharp plate edge can cut it, and the power cord is reported as too short.
A minority of owners report machines failing to power on after limited use with a very limited warranty response, and the warranty term is not stated on the listing. That combination means you should buy it from a seller with straightforward returns.
Clean Cut vs Maximum Severance: What the Ratings Actually Mean
Clean cut capacity is the thickness a machine cuts in one pass with the dross blown out the far side and a kerf you can weld to or grind without cleaning up first. Maximum severance is the thickest material the machine can physically remove, with a heavy dross layer and a wider, rougher kerf on the exit side.
Published spec sheets on this list follow the same pattern. The ARCCAPTAIN 50A is quoted at 18mm max and 12mm clean, the LOTOS LTP5505D at 3/4 inch severance and 5/8 inch clean, and the YESWELDER at 63/64 inch max against 5/8 inch clean. In every case the headline number is the severance figure.
The ratio between the two is consistently about 1.5 to 1. A machine with a 4/5 inch maximum will clean cut somewhere near 1/2 to 2/3 inch. A machine rated at 18mm maximum typically parts 12mm cleanly. Manufacturers measure the maximum figure because it is easier to demonstrate, not because it is the number you will use.
There is one further myth worth killing. A rated thickness is not a hole diameter and not a maximum cut length. It is a plate thickness, measured on a prepared coupon, at a stated amperage, air pressure and travel speed. A 4/5 inch rated machine will part a 4/5 inch hole if you stop moving the torch. It will not part 4/5 inch plate in a straight line at production speed.
110V vs 220V and Breaker Sizing
Run any of these machines on 110V and you get roughly half to two thirds of the output the 220V figure promises, because arc voltage stays roughly constant and current is what falls. The YESWELDER drops from 5/8 inch clean cut to 5/16 inch between the two settings, and the Reboot drops from 5/8 inch to 1/2 inch.
Do the electrical work before you buy the machine. Listed breaker requirements across this group run from 30A to 40A at 220V for the 50 and 55 amp machines, and up to 50A at 120V or 40A at 240V for the 60 and 65 amp units. A dedicated circuit, not a shared outlet with an extension cord, is the difference between a machine that cuts and one that stalls.
Forum users report that a 50 or 60 amp machine on a 240V circuit pulls well under 30A of real power during a cut, which is why a 40A breaker usually works. The number on the machine label is worst case input, not sustained draw.
Pilot Arc Types and HF Interference
A pilot arc is the small arc struck between the electrode and the workpiece before the main cutting arc is transferred. It is what lets a machine start on thick plate, and the three types behave very differently in a working shop.
Non-touch high frequency start uses a burst of high frequency energy to ionise the air gap. It starts through paint, rust and expanded metal without touching the plate, which is the most convenient option and the default on most machines here, including the ARCCAPTAIN pair, the SILATU, the FLARING and the Bestarc.
Non-HF blowback start uses a lower energy ignition that does not flood the shop with radio noise. The YESWELDER 60A and the PRIMEWELD CUT60 use this approach, and if your shop has a CNC controller, a garage door opener, a camera or Bluetooth equipment, it is the safer buying decision.
Touch arc requires you to drag the tip to the material. The Reboot and the FLARING use it. It is cheaper to build, and the trade-off is a stuck tip, faster electrode wear and poor behaviour on mesh or expanded metal.
Air Supply, Duty Cycle and a Cutting Chart
Air demand is set by nozzle size, not by machine brand. Published figures across this group range from 60 litres per minute on the Reboot RBC6000D and 150 litres per minute on the ARCCAPTAIN CUT50, up to 250 litres per minute on the SILATU STC650P and the Bestarc BTC500DP. Pressure targets sit between 50 and 75 PSI depending on the machine.
That is the figure that rules out small pancake compressors on thick plate. A tank that cannot recover pressure produces a sputtering arc and a poor edge, and the machine gets blamed for it. A water separator and a desiccant dryer in the air line are the cheapest quality upgrade available to you.
Tank size follows the same logic. A small tank paired with a strong pump will hold pressure through a single cut but collapse between them, and a larger tank with a weak pump will never reach the required flow at all. Match both together.
None of these machines includes a compressor. That is deliberate for this class of machine, since a built-in pump would eat into the weight budget and still fall short on 65 amp demand.
Use the chart below as a starting point and adjust for your machine, your consumable and your travel speed.
1/8 inch mild steel: 30-40 amps, 40 PSI, fast travel
1/4 inch mild steel: 40-50 amps, 50-55 PSI, moderate travel
3/8 inch mild steel: 50-55 amps, 60-65 PSI, steady travel
1/2 inch mild steel: 55-65 amps, 65-75 PSI, slow steady travel
5/8 inch mild steel: 65 amps on 220V, 70 PSI, slow travel, expect dross on the exit side
3/4 inch mild steel: 65 amps on 220V, severance only, plan a second pass to clean the kerf
1/4 inch stainless: 40-50 amps, 65 PSI, longer pilot arc duration, slower travel
1/2 inch stainless: 55-60 amps, 70 PSI, accept some dross and grind it back
Duty cycle is the other number that limits a thick steel day. A 60 percent rating means roughly six minutes of full output in every ten, with a cooldown in between. For most repair and fabrication work that is never the limit. For production cutting plate back to back all day, it is the reason to move up a class.
Where Plasma Stops and Oxy-Fuel Takes Over
Past roughly one inch of mild steel, an oxy-fuel torch wins on cost and heat control. A plasma cutter removes the heat into a narrow kerf and needs a lot of shop air to do it, while oxy-fuel preheats a wide zone and produces a slower, more controllable cut on very thick plate.
For most shops the practical split is simple. Use the plasma cutter for profiling and for plate up to three quarter inch, and keep an oxy-fuel setup for anything thicker or for the bevels and prep work that heavy plate demands.
Safety on Thick Steel Cuts
A plasma arc runs at tens of thousands of degrees and produces intense ultraviolet light that will burn your eyes, sometimes through an open shop door. A shade 8 welding helmet is the minimum, and a shade 10 is not unreasonable for thick plate work.
Cut fume from thick steel is heavier and sharper than the fume from a thinner cut, because more of the kerf is vaporising. Run extraction whenever the cut is not outdoors. Leather gauntlet gloves, flame resistant clothing, and hearing protection all matter more on a 65 amp cut than on a small job.
Two habits prevent most incidents. Never start a cut where sparks, dross and molten metal can reach another person, and never switch the machine off while the pilot arc is still live. Let the post-flow timer run its full course so the pilot arc, the nozzle and the electrode cool before the power goes.
How to Choose a Plasma Cutter for Thick Steel
Match the machine to your regular plate thickness, not to your thickest plate. The standard on our shortlist is that the clean cut rating should equal the material you cut most weeks, and the maximum severance rating should cover the occasional heavy piece. If your work is 1/2 inch mild steel, a 50 amp machine is the right answer and a 65 amp machine is money you do not need to spend.
Decide on ignition type second. If the machine shares a shop with a CNC table, a garage door opener or any sensitive electronics, pay for a non-HF blowback start. Otherwise a high frequency non-touch pilot arc is the more convenient tool on dirty material.
Check the warranty term and the return policy before you check anything else about the brand. Buyers in this category consistently recommend a seller with easy returns, because a meaningful share of budget machines arrive with problems in the first weeks and the warranty process is the part that gets painful.
Finally, budget the setup rather than just the machine:
A dedicated circuit at the breaker size the manual states, with no extension cords
A compressor that holds the stated pressure and flow at the stated tank size, not just at peak
A water separator and a desiccant dryer in the air line
A spare electrode, nozzle, shield cap and a height guide set ordered with the machine
A shade 8 or 10 helmet, gauntlet gloves, and fume extraction for indoor cuts
If your plate is thinner than a quarter inch or your cuts are mostly short profiles, our hobbyist plasma cutter picks cover the lighter machines at lower cost. If you are profiling metal for signage or small batch production rather than thick structural work, the laser cutter comparison is worth a look as an alternative process.
Frequently Asked Questions
How thick of steel can a plasma cutter cut through?
A single-phase machine clean cuts roughly half its advertised maximum. Budget for 1/4 inch clean on a 30-40 amp unit, 1/2 inch on a 50 amp machine, 5/8 inch on 55-60 amp machines and around 3/4 inch at the top end of the 65 amp class. The advertised figure is a severance rating, measured at 220V with good air pressure.
What is the maximum thickness a plasma cutter can cut?
For consumer single-phase machines, the practical ceiling is about one inch of mild steel for a 100 amp three phase unit, and just under one inch for the largest 65 amp machines on 220V. Industrial 100-200 amp systems reach 1.5 to 2 inch, at which point oxy-fuel is often the cheaper and more controllable option.
What plasma cutter can cut 1/2 inch thick steel?
Any 50 amp machine on a 220V circuit will part half inch mild steel cleanly, which makes the 50 amp class the entry point for thick steel work. If you want headroom for 5/8 inch plate as well, step up to 55 or 60 amps. Always check the clean cut rating, not the advertised maximum.
How thick of steel can a 65 amp plasma cutter cut?
A 65 amp machine on 220V is specified for about 20mm, or 4/5 inch, maximum severance at 70 PSI. Its realistic clean cut sits between 1/2 inch and 3/4 inch depending on the machine and the technique. On stainless and aluminium, reduce those figures by about a quarter.
Do I need 240V for a plasma cutter?
For thick steel, yes. All the machines here are dual voltage, but the 110V setting cuts current roughly in half and drops the clean cut capacity by more than a third. Listed breaker requirements run from 30A to 50A depending on the machine and voltage, so plan a dedicated circuit and avoid extension cords.
What does pilot arc mean on a plasma cutter?
A pilot arc is the small arc struck between the electrode and the workpiece before the main cutting arc transfers. A non-touch pilot arc starts the cut without touching the metal, which saves consumables and works on dirty, painted and expanded material. Touch arc machines require you to drag the tip to start.
Why is my plasma cutter sputtering?
The usual cause is inconsistent air pressure, usually a compressor too small to hold the required flow at the required PSI. Other causes include a worn or mismatched electrode and nozzle, a cracked shield cap, a loose ground clamp connection, low incoming voltage from a long extension cord, and a consumable set that has been run past its life.
Can a plasma cutter cut stainless steel and aluminum?
Yes, both are within the capability of every machine on this list. Expect roughly 75 percent of the mild steel capacity, because the kerf behaves differently on non-ferrous and stainless metals. Use more air pressure, a longer pilot arc duration and a slower travel speed, and expect to grind back some dross.
Final Verdict
For most people cutting thick steel, the ARCCAPTAIN 50A is the right place to start. It combines a 4.5 average across 1307 reviews with a verified half inch clean cut on 220V, a 13 lb body you can carry anywhere and an LED panel that tells you what the machine is doing. If you want a 5/8 inch rated machine with an even longer track record, the LOTOS LTP5505D carries more than two thousand reviews.
If your shop has CNC equipment or anything sensitive to electrical noise, the YESWELDER 60A is the one to buy instead, because its non-HF blowback start will not interfere with it. Buy the electrical work first, a compressor that holds the stated pressure second, and a spare consumable set third. That order of operations matters more than which brand ends up on your bench in 2026.
We are an Amazon Associate, and the links in this guide earn us a commission from qualifying purchases at no additional cost to you.
