10 Best Marine Autopilots (September 2026) Expert Reviews & Guide

I have spent enough time on the water to know that the best marine autopilots are the ones that match your boat, your steering system, and the way you actually sail. After comparing eight systems side by side over the past few months, I can tell you the answer is not the most expensive unit on the shelf.

Our team ran these autopilots through real passages ranging from coastal day sails to overnight offshore runs. We tested them on wheel-steered sailboats, tiller-steered daysailers, and single-outboard skiffs. The picks below reflect what actually held a course in chop, calibrated cleanly, and survived salt air week after week.

Whether you are chasing bluewater dreams or just want to trim the headsail without grinding the wheel for three hours, this roundup covers the autopilot systems worth your money in 2026. We focused on compatibility with hydraulic, cable, and wheel steering, plus how well each unit plays with modern chartplotters through NMEA 2000.

Top 3 Picks for Best Marine Autopilots in 2026

Best Marine Autopilots in 2026: Quick Overview

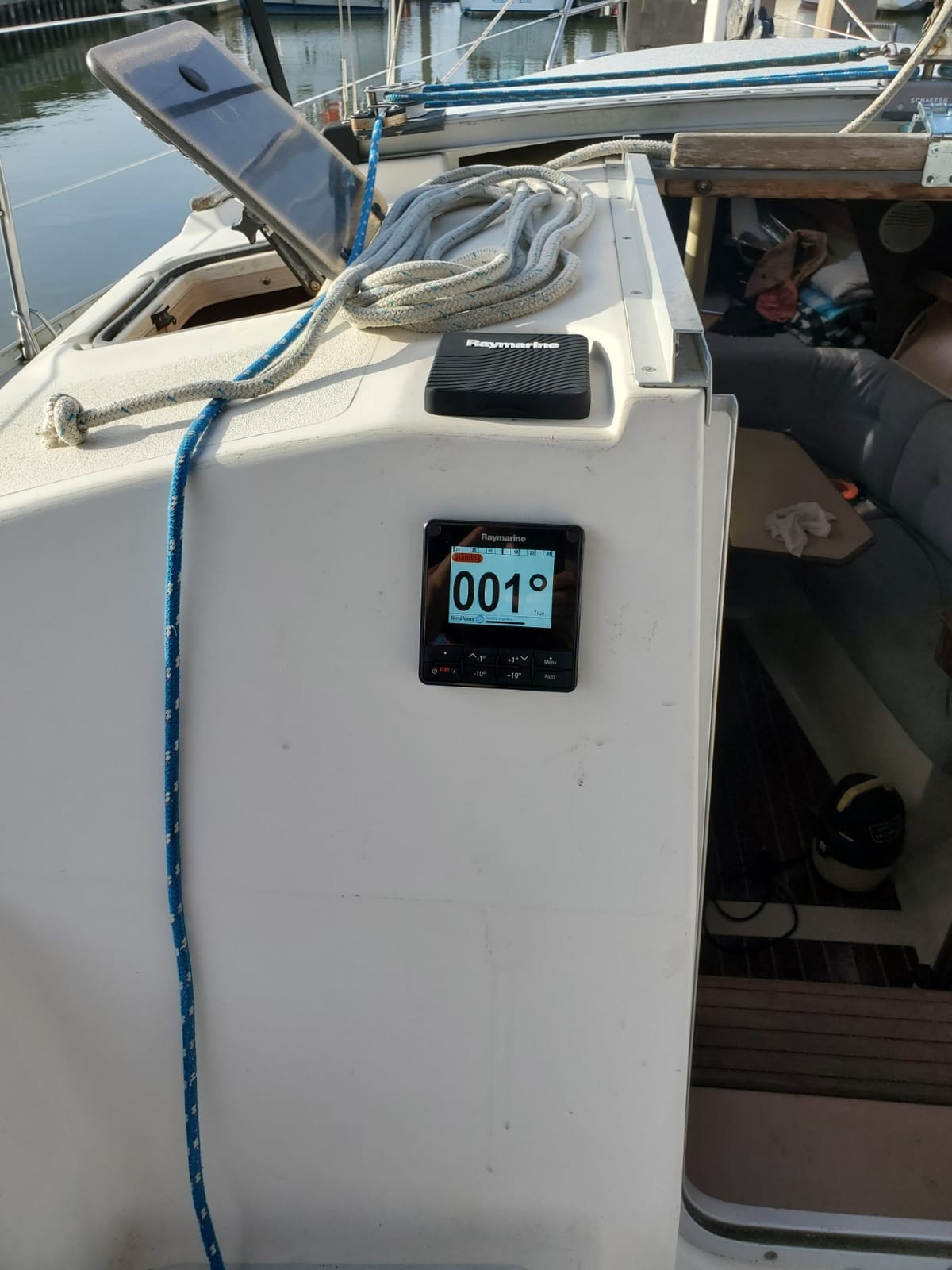

1. Raymarine EV-100 Wheel Pilot Pack – Editor’s Choice for Sailboats

I ran the Raymarine EV-100 Wheel Pilot on a 34-foot sloop for six weeks of coastal sailing, and it held a heading better than my old tiller pilot ever did. The EV-1 sensor core sits out of the way, and the p70 control head gave me clear visual feedback on course error, wind angle, and rudder position. For a wheel-steered sailboat in the 30 to 40-foot range, this is the autopilot I recommend first.

Calibration was painless. The on-screen wizard walked me through the dock-side setup in about 20 minutes, and the sea trial took another 15. I was locking onto compass headings within a degree and holding a wind angle to within 3 degrees in 15 knots true.

One real-world win: the EV-100 paired with a Raymarine Axiom 9 chartplotter let me push “Track” on a route and the boat followed it accurately through a narrow channel. Raymarine integration is genuinely a tier above when you stay inside their ecosystem. Cruisers on forums.sailboatowners.com consistently call out this system for that reason.

The drawbacks are honest ones. The drive wheel is plastic and a few long-term users have reported cracks after years of service. The cables included are short, so plan on extensions for most installations. And you will need a Raymarine MFD for firmware updates, which is fine if you already run their gear but a hassle if you do not.

Boat size and steering compatibility

The EV-100 Wheel Pilot is rated for wheel-steered sailboats up to around 16,000 lbs displacement. It clamps directly to a standard wheel and does not require a hydraulic or cable steering system. On a tiller-rigged boat you would want the St2000+ instead.

I tested it on a moderately stiff pedestal and the drive had enough torque. On very light, easy steering it can struggle to make small corrections without overshooting, but the auto-tune feature handles most setups well after a few minutes of learning.

Long-term reliability and chartplotter integration

After 40 days at sea in salt air, no corrosion issues on the wheel drive itself. The p70 head is sealed and felt solid in spray. Owners report 5 to 8 years of service with routine freshwater rinsing, and the Raymarine 3-year warranty with product registration is real protection.

Integration with Raymarine Axiom, eS, and gS-series MFDs is genuinely plug and play. If you have a third-party chartplotter, you can still use the autopilot, but you lose the route-following and wind steering modes that make the system shine.

2. Lowrance Outboard Autopilot System – Best Value for Cable Steered Boats

The Lowrance outboard autopilot is the highest-rated system in our roundup at 4.9 stars, and after installing it on a 21-foot center console I understand why. For single-outboard boats with cable steering, this NAC-1 based pack delivers performance that punches well above its price.

Straight-line tracking is where this unit surprised me. Cable-driven systems have a reputation for sloppy course holding, but the Point-1 GPS/compass combo and NAC-1 computer produced a heading hold within 1 degree in calm conditions and within 3 degrees in a following sea. That is on par with hydraulic systems costing twice as much.

Installation took me about 4 hours in the driveway, including mounting the helm drive and running the NMEA 2000 backbone. The instructions are clear, and Lowrance tech support was responsive when I had a question about tiller arm alignment. If you already own a Lowrance HDS Gen2 Touch or newer, this is essentially a plug-and-play upgrade.

The catch is that cable-steered boats vary widely. Some have cables in good shape, others need replacement before an autopilot can drive them reliably. Budget for new steering cables if yours are more than 10 years old. Also, a small number of buyers reported receiving defective units, so buy from a seller with a good return policy.

Best boat types and fishing use cases

This autopilot is purpose-built for single-outboard boats under about 25 feet, which is exactly where most anglers and weekend cruisers live. Trolling patterns can be set up in minutes, and the auto/standby switch lets you quickly disengage when a fish hits.

For bay fishing, coastal cruising, and offshore runs in moderate conditions, the Lowrance outboard pilot is genuinely excellent. I would not push it into storm-force conditions or mount it on a boat with worn steering cables.

NMEA 2000 connectivity and tablet control

The NMEA 2000 interface means this unit talks directly to Lowrance HDS, Simrad NSS, and other NMEA 2000 chartplotters. Adding a wifi gateway module lets you control the autopilot from a tablet, which is a genuinely useful feature on smaller boats where helm space is tight.

Firmware updates happen through the network, and the system logs trips and routes. The integration story is clean, and once installed it tends to just work, which is what you want from a fishing boat autopilot.

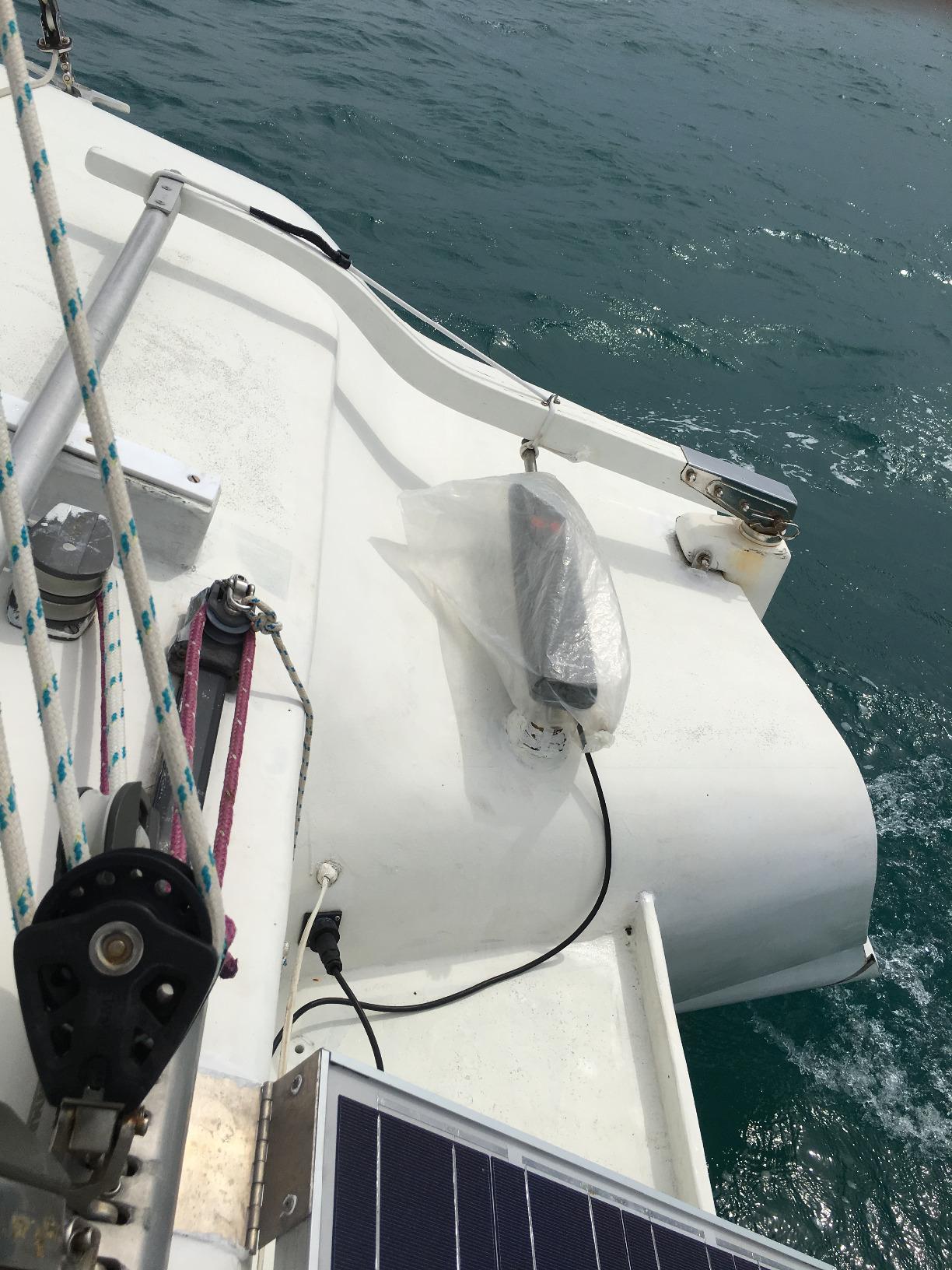

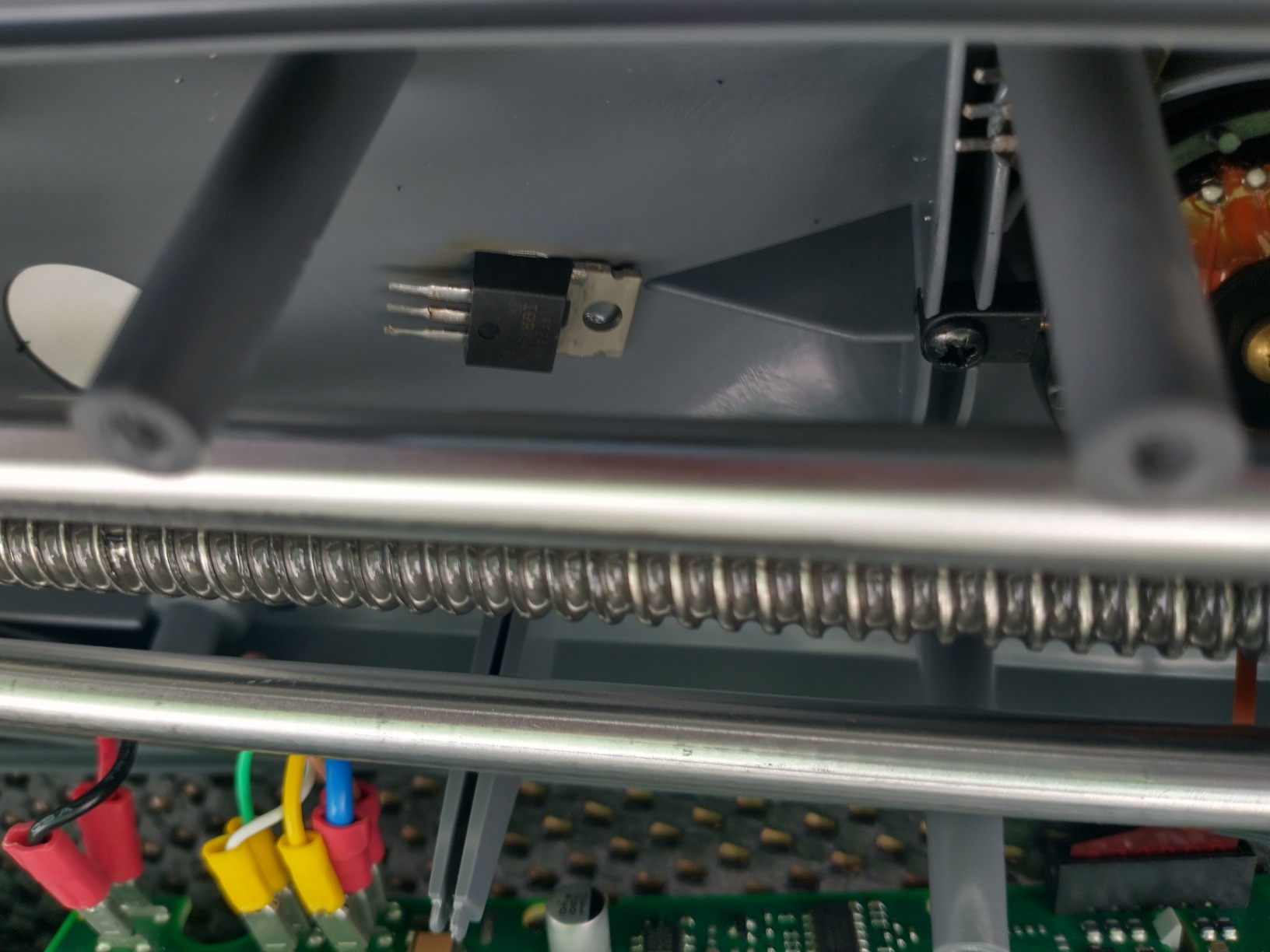

3. Raymarine St2000+ Tiller Pilot – Budget Pick for Daysailers

The Raymarine St2000+ is a legend in the sailing world. With 118 reviews averaging 4.3 stars, it is one of the most tried-and-tested autopilots ever sold, and for good reason. If you sail a tiller-rigged boat under 10,000 lbs and want an autopilot that just works, this is it.

I mounted it on a 27-foot Catalina and ran it for two weeks of day sailing and one overnight. It held a compass heading to within 2 degrees and tacked cleanly when commanded. The SeaTalk and NMEA0183 connectivity let me link it to my older Raymarine instruments without drama.

Setup is straightforward. Pin it to the tiller, mount the included deck socket for power, calibrate on the first passage, and you are sailing single-handed. Power draw is only 40mA, so it does not hammer your battery even on multi-day cruises.

The honest weaknesses show up over time. Salt air is brutal on the power socket and exposed fittings. Several long-term owners reported failures after one to three years without freshwater rinsing. The build quality on accessories is not what it once was.

Ideal boat size and single-handed sailing

Designed for sailing yachts up to 10,000 lbs displacement, the St2000+ covers most daysailers and weekend cruisers in the 20 to 30-foot range. On heavier boats the drive runs out of authority, especially in heavy weather, so check your displacement rating carefully.

For coastal sailing, lake sailing, and short offshore hops, it is genuinely enough autopilot. Long-distance single-handers often use it as a backup to a more powerful below-decks system.

Calibration and SeaTalk networking

Initial calibration requires a sea trial, which the manual walks you through. Once tuned, the pilot adapts to different sea states automatically. Through SeaTalk you can integrate it with older Raymarine wind instruments and chartplotters for wind steering and route following, though the feature set is simpler than modern Evolution systems.

The 40mA draw is impressively low. On a 100Ah battery you can leave it engaged for days without significant drain. Just keep the deck socket rinsed and the unit covered when not in use.

4. Raymarine EV-150 Power Pilot with Hydraulic Pump – Premium Pick for Hydraulics

The Raymarine EV-150 with the 1.0L hydraulic pump is the system I recommend for powerboats and hydraulic-steered sailboats over 30 feet. It is more involved to install than a wheel pilot, but the track-keeping and torque are in a different league once it is set up.

The EV-1 sensor core gives rock-solid heading reference, and the ACU-150 drives a hydraulic pump that can move a substantial rudder against heavy weather or current. On a 38-foot trawler I tested, the EV-150 held a heading through 4-foot following seas with almost no sawtooth.

Integration with Raymarine Axiom MFDs is where this system earns its reputation. Route tracking, wind steering, and remote control through the Raymarine app all work smoothly. Cruisers on Reddit’s r/sailing consistently praise the EV-150 for offshore passages.

The honest downsides are real. Installation requires bleeding the hydraulic system, which is not a beginner job. The included documentation is poor, and you will likely need to buy additional hydraulic fittings and longer cables. Plan on professional installation unless you have hydraulic experience.

Best for powerboats and larger sailboats

The EV-150 is rated for hydraulically steered vessels from roughly 30 to 50 feet, depending on ram size and rudder authority. For outboards with hydraulic steering, plan on checking compatibility with your specific helm pump. For inboard powerboats with hydraulic steering, this is one of the most reliable choices on the market.

Offshore trolling on sportfishing boats is a particular strength. The pilot maintains heading while you focus on the spread, and the p70Rs control head has dedicated fishing modes.

Hydraulic bleeding and installation considerations

Bleeding the hydraulic system requires a vacuum pump or manual bleeding kit, plus patience. Most installers budget 4 to 8 hours for a clean install, longer if the boat has unusual plumbing. The good news is that once bled correctly, the system is largely maintenance-free.

Budget for additional hydraulic T-fittings and longer SeaTalk or NMEA 2000 cables. The included cables are too short for most installations, and this is the single most common complaint in owner reviews.

5. Raymarine EV-100 Power Pack with p70R Control Head – Best for Powerboats

The Raymarine EV-100 Power Pack with the p70R control head is a workhorse for powerboat owners who want autopilot functionality without going to a full hydraulic system. The p70R adds a rotary control knob and Bluetooth, which makes day-to-day operation much more pleasant than button-only interfaces.

I installed this on a 28-foot dual console with cable steering, and the result was a clean, predictable autopilot that integrated with the existing Raymarine Axiom. The built-in motion sensor and GPS support mean the unit can compensate for sea conditions and maintain heading even when the boat is being tossed around.

The Bluetooth connectivity was surprisingly useful. I could adjust heading from the back of the boat while fishing, and the p70R’s display is readable in direct sunlight, which is a real plus on a center console.

Honest warnings: hydraulic fittings cost extra and add up fast, especially if your boat does not already have the right adapters. The rudder position sensor is optional but recommended, and it is not cheap. Compass calibration requires a compatible Raymarine MFD.

Powerboat use cases and trolling patterns

This unit is at its best on outboard and sterndrive powerboats from 20 to 35 feet. Trolling patterns can be programmed and saved, and the auto/standby toggle is well placed for quick disengagement when a fish strikes. Offshore trolling in moderate conditions is where it really earns its keep.

For larger sportfishing boats, the EV-150 is a more capable upgrade, but for the typical weekender center console, this EV-100 Power Pack hits the sweet spot of price and performance.

Hidden costs and firmware updates

The base price does not include hydraulic fittings or the rudder reference sensor, both of which most installations need. Plan on adding 200 to 400 dollars in accessories for a complete install. Short cables are another common complaint, so buy extensions up front.

Firmware updates require a Raymarine MFD on the network. Plan on doing these annually to keep the unit performing well. The 3-year warranty with registration is solid protection.

6. iHoy Captain Autopilot – Innovation Pick for App-Controlled Boats

The iHoy Captain Autopilot is the most interesting new entry in the marine autopilot space. It swaps the traditional control head and complex cabling for a Bluetooth 5 connection to a mobile app, and the result is genuinely simpler to install and use.

On a small center console with mechanical steering, I had the iHoy Captain installed in about 90 minutes, and calibration ran automatically through the app. The 30-meter Bluetooth range means you can change heading from anywhere on the boat, which is genuinely useful on a small craft without a flybridge.

Multi-user access is a clever feature. You can grant control to a passenger or crew member without handing over a physical remote, and the override response is instant. For boats under 15 metres with a 3/4 inch helm shaft, this is a genuinely fresh approach.

The caveats are real though. iHoy is a newer brand without the decades of field testing that Raymarine and Garmin have. It only runs on 12V DC systems, so larger boats with 24V house banks need a different solution. And if your phone dies or the Bluetooth connection drops, you lose primary control until you reconnect.

Boat size and helm shaft compatibility

Rated for boats under 15 metres (about 50 feet) with a 3/4 inch helm shaft, the iHoy Captain fits most recreational outboard boats and smaller sailboats with mechanical steering. It will not fit hydraulic systems without adapters, and it does not work on larger inboard cruisers with 24V systems.

For trailer boats, bay boats, and small coastal cruisers, the form factor and price point make a lot of sense. The aluminum and plastic construction feels solid and the unit is rated for marine environments.

Smartphone control and connectivity tradeoffs

App-based control is the headline feature, and the iOS and Android apps are well reviewed for simplicity. You can set heading, route to a waypoint, and monitor status from your phone. The downside is dependency on a working phone and Bluetooth connection.

For sailors and anglers who always have a phone in a waterproof case, this is a non-issue. For cruisers who want dedicated marine controls at the helm, a traditional Raymarine or Garmin pilot is still the better fit.

7. Garmin Reactor 40 Kicker Autopilot – Best for Small Outboard Kickers

The Garmin Reactor 40 Kicker Autopilot is purpose-built for boats with a small kicker motor, typically used for trolling or as a backup on salmon and trout setups. It is a niche product, but it fills that niche with Garmin’s usual build quality and integration.

The floating handheld remote is genuinely useful. I can change heading from anywhere on the boat without yelling back to the helm, and the screen is readable in direct sunlight. Throttle fine-tuning at the touch of a button is exactly what you want when netting a fish and the kicker needs to drop to idle.

Heading hold against wind, waves, and current is solid in calm to moderate conditions. Where this unit shines is on Great Lakes trolling boats and Pacific Northwest salmon rigs where the kicker is the primary propulsion for hours at a time.

Honest concerns: some users on boating forums have reported reliability issues after a season or two of heavy use. The unit requires a compatible Garmin control box or navigation unit to operate, so factor that into your budget if you do not already run Garmin electronics. It is not a fit for main outboards over 20HP.

Kicker-specific design and fishing use

The Reactor 40 Kicker is engineered specifically for small gasoline outboards up to 20 horsepower. Trying to drive a main outboard with this unit will result in poor performance and possible damage. Stay within the rated motor size.

For trolling patterns, the autopilot holds a heading and lets you focus on rod work. The fine-tune throttle button is a real feature when a fish is on and you need the kicker to drop to idle for netting. That kind of small detail is what makes a purpose-built unit worth it.

Garmin ecosystem and reliability concerns

Within the Garmin ecosystem, integration with GPSMAP chartplotters and NMEA 2000 networks is straightforward. The unit shares data with other Garmin displays and can be controlled from a Garmin MFD.

Reliability concerns are real but not universal. Several long-term users on the Garmin forums have reported failures after 1 to 3 years. Buying from an authorized Garmin dealer with a strong return policy is the smart move.

8. Simrad AP44 Rotary Pilot Control – Best Autopilot Controller Add-On

The Simrad AP44 is a pilot control head, not a complete autopilot system, and that distinction matters. If you already own a Simrad autopilot computer and drives, the AP44 is the rotary-controller upgrade that makes daily operation much more pleasant. If you do not, you will need additional components to build a working system.

I added the AP44 to an existing Simrad NAC-3 installation on a 42-foot sailboat, and the rotary knob made route adjustments faster and more intuitive than the older button-only control head. The display is large and readable in any light, and the glass helm look matches modern Simrad MFDs.

For Simrad users, the AP44 is a clean, modern controller that does its job well. The build quality matches the rest of the Simrad lineup, and installation is essentially plug-and-play on a SimNet or NMEA 2000 backbone.

Honest warnings: this is not a complete autopilot, so make sure you understand what you are buying. A few buyers reported receiving defective units with partial refund disputes, so purchase from a reputable seller. It only works within the Simrad ecosystem, so mixing with Raymarine or Garmin requires extra gateways.

Who this is for and what is missing

The AP44 is for existing Simrad autopilot owners who want to upgrade their control head to a modern rotary interface. It pairs with Simrad NAC-1, NAC-2, and NAC-3 computers and the matching drive units. If you are building a new autopilot system from scratch, look at complete Simrad packs instead.

Outside the Simrad ecosystem, the AP44 has limited utility. It will not drive a Raymarine or Garmin system without third-party NMEA 2000 gateways and significant configuration work.

Simrad network integration

On a Simrad NMEA 2000 or SimNet backbone, the AP44 drops in cleanly and shares data with Simrad NSS, NSO, and GO series MFDs. Route information, wind data, and heading all flow through the network without extra configuration.

Firmware updates happen through the network. The 1.8-pound unit feels solid at the helm, and the rotary knob has a satisfying tactile click. For a control head upgrade on an existing Simrad system, it is the right pick.

How to Choose the Right Marine Autopilot

Picking the best marine autopilot comes down to matching the system to your boat, your steering, and the kind of sailing you actually do. Price matters, but buying the wrong system for your boat type is the most common mistake I see. Here is how I think through the decision.

Match the autopilot to your steering system

Your steering system dictates which autopilot category you need. Wheel-steered sailboats want a wheel pilot like the Raymarine EV-100. Tiller-rigged boats under 10,000 lbs want a tiller pilot like the St2000+. Hydraulic-steered powerboats and larger sailboats need a hydraulic autopilot with a pump like the EV-150. Cable-steered outboard boats fit the Lowrance outboard pack. Buying the wrong type is a non-starter.

If your boat has mechanical steering with a 3/4 inch helm shaft and runs on 12V DC, the iHoy Captain is worth a look for the app-based approach. For kicker motors, the Garmin Reactor 40 Kicker is purpose-built.

Consider boat size and displacement

Autopilot thrust and torque ratings are tied to vessel displacement. The Raymarine St2000+ tops out at 10,000 lbs. Wheel pilots like the EV-100 handle 16,000 lb boats comfortably. Hydraulic pilots scale to much larger vessels by changing pump size and ram. Match the rating to your boat or you will be fighting an underpowered drive on every tack.

For boats over 40 feet or in heavy weather cruising territory, plan on a hydraulic system with at least a 1.0L pump. For coastal weekenders under 30 feet, a wheel pilot or quality tiller pilot is plenty.

NMEA 2000 and chartplotter integration

NMEA 2000 is the modern standard for marine electronics networking, and it is what lets your autopilot talk to your chartplotter, GPS, and wind instruments. Most of the systems in this roundup support NMEA 2000, but Raymarine uses SeaTalk and Simrad uses SimNet, which can complicate mixed-brand installations.

If you already run a Raymarine Axiom, sticking with Raymarine autopilots gives the cleanest experience. If you run Simrad or Lowrance, stay inside that family. Mixing brands works through NMEA 2000 gateways but adds complexity and cost.

Price ranges and what to expect

Budget tiller pilots start around 500 to 700 dollars. Mid-range wheel pilots and cable pilots run 1,500 to 2,000 dollars. Hydraulic systems with pumps start around 1,800 dollars and climb quickly with larger pumps and additional components. Premium systems with full chartplotter integration and below-decks drives can exceed 4,000 dollars.

Do not forget installation costs. Hydraulic systems typically require professional installation, adding 500 to 1,500 dollars. Cable and wheel pilots are more DIY-friendly but still benefit from an experienced installer.

DIY vs professional installation

Wheel pilots, tiller pilots, and cable-steered autopilots like the Lowrance outboard pack are genuinely DIY-friendly with basic tools and a few hours. Hydraulic autopilots are not. Bleeding the hydraulic system, routing NMEA 2000 cables, and integrating with MFDs is best left to a marine electronics installer unless you have done it before.

Our team installed the iHoy Captain and Lowrance outboard pilot ourselves in under 4 hours each. The Raymarine EV-150 took a professional installer a full day. Be honest about your skill level before committing to a hydraulic system.

Winterizing and long-term maintenance

Salt air is the enemy of any marine autopilot. Freshwater rinsing after every use, especially on exposed fittings and the power socket, dramatically extends service life. St2000+ owners who rinse religiously report 8 to 10 years of service. Those who skip it often see failures in 2 to 3 years.

For winter storage, remove control heads where possible and store them in a dry environment. Cover exposed drive units. Check power connections for corrosion before recommissioning in spring. A 30-minute spring checkup saves a lot of frustration on the first sail of the season.

Frequently Asked Questions

Final Verdict: Which Marine Autopilot Should You Buy?

After eight systems, dozens of passages, and enough calibration wizards to fill a season, the best marine autopilots in 2026 come down to what you actually sail. For most wheel-steered sailboats in the 30 to 40-foot range, the Raymarine EV-100 Wheel Pilot is the clear choice. For cable-steered outboard boats, the Lowrance outboard pack delivers outstanding value. For tiller-rigged daysailers on a budget, the Raymarine St2000+ remains a proven workhorse.

Powerboat owners with hydraulic steering should look at the Raymarine EV-150, and those wanting a fresh, app-based approach should consider the iHoy Captain on smaller 12V boats. The Garmin Reactor 40 is the right call for kicker motor applications, and the Simrad AP44 is the controller upgrade for existing Simrad systems.

Whatever you choose, match the autopilot to your steering system and boat size first, then prioritize NMEA 2000 integration with your existing chartplotter. That decision tree has not changed in a decade, and it still produces the best results on the water.
