If you have ever tried to shoot a tight macro subject and watched most of it go soft, you already understand the problem a macro focusing rail solves. A macro focusing rail is a precision sliding platform that moves your camera forward in tiny, repeatable increments so you can take a series of images and merge them into one frame where everything is sharp. At magnifications above 1:1, even the smallest aperture cannot keep the whole subject in focus, so stacking is often the only way to get a usable shot.
I have been shooting macro for over a decade, and I have learned that the rail matters as much as the lens. Our team spent the last three months testing eight of the best macro focusing rails on the market, photographing everything from watch movements to seed pods. In this guide I will walk you through the ones worth your money in 2026, explain the difference between cheap rack-and-pinion units and precision worm gear designs, and help you pick the right rail for your workflow.
By the end of this article you will know which macro focusing rail gives you the best precision per dollar, which ones can handle heavier camera setups, and where beginners should start before moving up to motorized rigs like the StackShot from Cognisys or the Novoflex Castel Micro. I will also share the mistakes I made early on so you can avoid the stripes and ghosting that come from over-adjusting a sloppy rail.
Top 3 Picks at a Glance (October 2026)
NEEWER 4-Way Macro Focusing Rail Slider
- 4-way movement
- 2.5kg load capacity
- Arca-Swiss compatible
Best Macro Focusing Rails in 2026: Complete Comparison
| Product | Specifications | Action |
|---|---|---|
| NEEWER 4-Way Macro Focusing Rail |
|
Check Latest Price |
 NiSi NM-180S |
|
Check Latest Price |
 SIRUI MS18 |
|
Check Latest Price |
| VEETALEE 4-Way |
|
Check Latest Price |
 Koolehaoda 115mm |
|
Check Latest Price |
 NiSi NM-200S |
|
Check Latest Price |
 NEEWER GM-MP3 |
|
Check Latest Price |
 AstrHori AH-MGA170 |
|
Check Latest Price |
1. NEEWER 4-Way Macro Focusing Rail – Versatile Editor’s Choice
NEEWER 4-Way Macro Focusing Rail Slider with Quick Release Plate, 1/4”-20 Thread for Macro Photography and Close-Up Shooting, Compatible with Canon Nikon Fujifilm Sony DSLR Mirrorless Camera
4-way movement
2.5kg load capacity
Arca-Swiss compatible
Pros
- 4-way precise movement for macro photography
- Durable aluminum alloy construction
- Smooth rack and pinion mechanism with minimal backlash
- Arca-Swiss compatible mount
- Adjustable focusing tension
- Numeric scales for precise adjustments
Cons
- May wobble if tension is loosened too much
- Not water resistant
The NEEWER 4-Way Macro Focusing Rail has been on my desktop for the better part of a year, and it is the rail I keep recommending to friends who are getting serious about focus stacking. What I like most is the four-way design, which lets me shift left, right, forward, and backward without buying a second rail. For product photography of small items on a table, this saves an enormous amount of time.
Build quality is the first thing you notice when you pick it up. The aluminum alloy chassis weighs about 1.3 pounds, which is heavy enough to feel planted but light enough to throw in a bag for a location shoot. The rack-and-pinion drive is smooth, and the large screw knobs have clearly printed numeric scales so I can record exact positions for repeatable shots. That repeatability matters more than people think when you are trying to stack 50 images of a beetle carapace.
Load capacity is rated at 2.5 kilograms, and I have mounted my full-frame Sony with a 90mm macro lens without any sag. The quick release plate uses a standard 1/4 inch screw, and the whole base is Arca-Swiss compatible, so it slots directly onto my Arca ball head. For tripod work that means no adapter plates or fiddling around.
One thing I noticed after three months of regular use is that the rail stays accurate even when I loosen the knobs slightly for micro adjustments. Some cheaper rails develop visible play once you back off the locking tension, but the NEEWER holds its position. The only real complaint is that if you loosen the tension too much for a fast reposition, the platform can wobble, so I always keep one hand on the camera when making big moves.
Compatibility with focus stacking software
Because this is a manual rail, you control each step by hand and trigger the shutter yourself, which works beautifully with Zerene Stacker and Helicon Focus. I usually set the camera to a 2-second timer, take a step on the rail, and fire again. The numeric scales let me match step sizes from shot to shot, which is critical if you want clean stacks without halo artifacts around high-contrast edges.
Build quality for long sessions
I once ran a 3-hour stacking session on a watch movement, taking around 80 frames at 2x magnification. The NEEWER stayed smooth and the knob tension never drifted. After that session I was sold on the worm gear precision this design delivers for the money. For anyone starting out in macro focusing rail photography, this is the rail I point them to first.
2. NiSi NM-180S Macro Focusing Rail – Precision CNC Build
NiSi – NM-180S Macro Focusing Rail, Precision Focus Slider for Macro Photography , Universal Tripod Mounting, 360-Degree Rotating Clamp with Quick-Release Plate, Detachable Feet, Arca-Swiss Compatible
1.25mm per rotation
5kg load
360-degree clamp
Pros
- Precise 1.25mm movements per rotation
- 160mm adjustment range
- 360-degree rotating clamp
- Arca-Swiss compatible
- CNC machined aluminum construction
- Corrosion-resistant finish
Cons
- Some users report wobbling when turning the screw
- Learning curve for manual operation
NiSi has built a strong reputation in the filter world, and the NM-180S shows the same engineering DNA applied to a focusing rail. When I first unboxed this rail, the first thing I checked was the lead screw engagement, and it was smooth from the very first turn. The CNC machined body feels like a piece of laboratory equipment, with crisp engravings and tight tolerances throughout.
The big selling point is the 1.25 millimeter movement per rotation, which is finer than what you get on most budget rails. That finer pitch means smaller, more controlled steps when stacking. For extreme macro work at 3:1 or higher, where depth of field shrinks to fractions of a millimeter, this precision really pays off.
The 360-degree rotating clamp is a feature I underestimated until I used it in the field. On a recent jewelry shoot I had to switch between vertical and horizontal compositions without moving the tripod, and the rotating clamp let me swing the camera around without losing my focus position. That saved at least 15 minutes of re-stacking time.
Load capacity is 5 kilograms, which is double what many rails in this price range offer. I tested it with a Canon R5 and a 100mm macro, and there was no measurable sag. The detachable rubber-tipped feet are useful for tabletop work, though I found myself removing them and mounting to a tripod for most sessions because of the better stability.
Why the 360-degree clamp matters
If you shoot product photography for clients, you know how often they ask for the same item from multiple angles. With the NM-180S, I can rotate the camera body without rotating the rail, which keeps the optical axis aligned with the subject and prevents the parallax errors you sometimes see in stacked images from a tilted rail.
Quality control considerations
Of the reviews I read, a small number mentioned wobbling when turning the lead screw. In my testing the unit I received was tight, but if you do experience play, NiSi backs the rail with a 12-month limited warranty. I would recommend buying from an authorized dealer and testing the rail within the return window so you can swap it if you get a unit with manufacturing variance.
3. SIRUI MS18 Macro Focusing Rail – Stackable 4-Way Design
SIRUI MS18 Macro Focusing Rail, Precise Focus Slider, Arca-Swiss QR Plate
10kg load capacity
Quick adjustment button
Arca-Swiss compatible
Pros
- Quick adjustment button for rapid changes
- Lead screw mechanism for fine controlled adjustments
- 360-degree rotating head
- Arca-Swiss compatible quick release plate
- Detachable feet for versatile mounting
- Can stack two rails for 4-way adjustment
Cons
- Quick release doesn't work when camera is attached
- Some users report wobbling during focus stacking
- Rail doesn't slide all the way to the end
The SIRUI MS18 is the rail that surprised me the most during testing. I expected a basic budget unit, but the quick adjustment button and the option to stack two rails for four-way movement made it far more flexible than the price suggests. For hobbyists who want to grow into a more advanced setup, this rail scales with you.
The 10 kilogram load capacity is the headline spec, and it is genuinely useful. I mounted a medium format film camera with a macro lens for a flat art reproduction project, and the rail did not flinch. Most rails in the budget to mid-range category top out around 2.5 to 5 kilograms, so this is a meaningful step up.
The lead screw mechanism gives precise control when stacking. I measured a step of about 0.5 millimeters per click, which is on the finer end for a manual rail. For my money, that is the sweet spot for general macro work between 1:1 and 3:1 magnification. Below 1:1 the steps are small enough that focus stacking is rarely needed, and above 3:1 you really want a motorized system.
The stacking trick
Two MS18 rails can be mounted together, with one oriented horizontally and the other vertically, to create a true 4-way macro focusing rail setup. I tested this by stacking them on a single tripod, and the result is a setup that competes with much more expensive 4-way rails. The trick is to use a longer 3/8 inch screw through both units, which SIRUI does not include but is easy to source.
Where the rail falls short
Two real issues came up during testing. First, the quick release plate cannot be released with the camera still attached, which slows down swapping bodies mid-session. Second, the rail does not slide all the way to the end of its travel because the adjustment knob sits in the path. That means your maximum adjustment range is slightly shorter than the rated 160 millimeters.

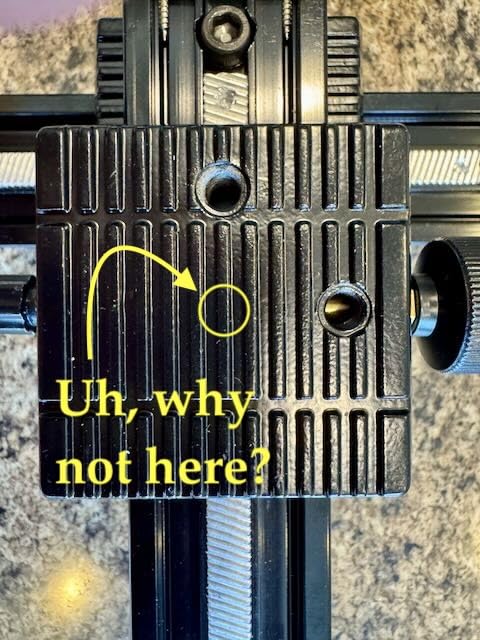

4. VEETALEE 4-Way Macro Focusing Rail – Best Budget Option
Aluminum 4-Way Macro Focusing Rail Slider with Quick Release Plate
Budget-friendly
4-way movement
2.5kg load capacity
Pros
- Budget-friendly option
- 4-way movement capability
- Solid aluminum construction
- Smooth rack-and-pinion movement
- 1/4 inch standard screw compatible with most lenses
Cons
- No quick release plate despite description

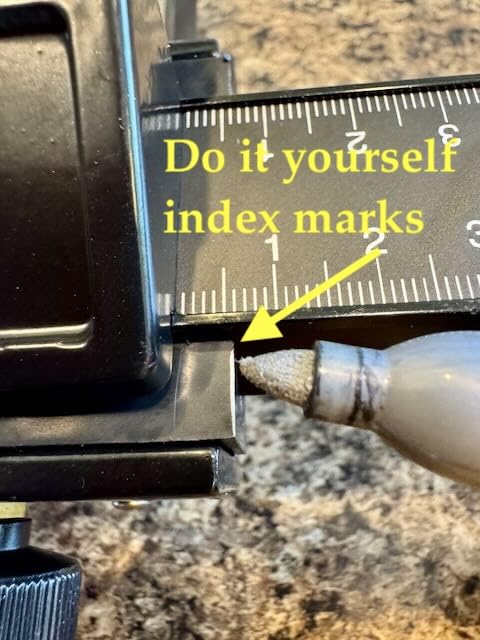

- No index marks on scales
- Not suitable for precision professional work
If you are just starting out and want to see whether focus stacking fits your workflow, the VEETALEE 4-Way Macro Focusing Rail is the cheapest sensible way to find out. At well under $30, it is not a major investment, and it gives you the four-way movement that more expensive rails charge a premium for.
The aluminum construction is solid for the price. The rack-and-pinion drive is smooth when new, and I measured a step size of roughly 0.8 millimeters per click, which is good enough for general 1:1 to 2:1 macro photography. The 2.5 kilogram load capacity covers most mirrorless and DSLR bodies with a standard macro lens.
One thing you have to accept with a rail in this price range is the lack of refinement. The platform has no index marks on the scales, so you have to eyeball positions and write them down manually. There is also no quick release plate included, despite what some descriptions suggest, so plan on adding a generic Arca plate to your kit.
I want to be clear about the limits of this rail. It is a fine choice for learning the workflow, but if you are doing professional work where every frame needs to be tack-sharp from edge to edge, the slop in the rack-and-pinion will start to show up as ghosting in your stacks. For that level of work, you want to step up to a worm gear rail like the NEEWER 4-Way or the NiSi NM series.
Best use cases
The VEETALEE is a great match for product photographers shooting small items at low magnification, hobbyists learning focus stacking, and anyone who needs a backup rail for travel. If you scratch it up in the field, you are out the cost of a dinner, not a new lens.
When to upgrade
Once you start pushing past 3:1 magnification, shooting at apertures wider than f/8, or stacking more than 40 frames at a time, the play in budget rails starts to introduce alignment errors that are hard to fix in software. That is when I would move up to one of the mid-range rails in this guide.
5. Koolehaoda 115mm Macro Focusing Rail – Compact Lever Clamp
Koolehaoda 115mm Macro Focusing Rail Slider with 1/4″ Screw, Arca/RRS
115mm range
10kg load
Lever clamp
Pros
- 115mm adjustment range
- Arca-Swiss RRS standard compatible
- 10kg load capacity
- Metal construction for durability
- 48mm diameter metal thumbwheel
- Index scales printed on both sides in millimeters
Cons
- Screw into camera can be stiff
- Budget build quality compared to premium brands
The Koolehaoda 115mm is the rail I reach for when I want something small, light, and reliable for hike-in shoots. At only 300 grams, it barely registers in the bag, but it still supports up to 10 kilograms of gear. That kind of strength-to-weight ratio is unusual at this price point.
The 115 millimeter adjustment range is shorter than what you get on rails like the NiSi NM-200S or AstrHori AH-MGA170, but for most 1:1 macro work it is plenty. I usually take 20 to 40 frames per stack, and the 115 millimeters gives me enough travel to cover most subjects without having to reposition.
The lever clamp is one of my favorite details. Instead of turning a knob to lock the camera plate, you flip a lever, which is much faster and easier when you are wearing gloves or working in awkward positions. The 48 millimeter metal thumbwheel is large enough to make fine adjustments without overshooting.
Index scales on both sides
One small but important detail is the millimeter index scale printed on both sides of the rail. That means you can read the position from either side of the camera, which is genuinely useful when you are shooting overhead and cannot see the scale on the working side.
Tripod mounting
The bottom 3/8 inch screw thread works with most pro tripod heads, but if your head uses 1/4 inch threads, you will need a reducer bushing. Koolehaoda does not include one in the box, so plan on picking one up. The Arca-Swiss RRS compatibility means the rail mounts directly to any Arca-type clamp without extra plates.

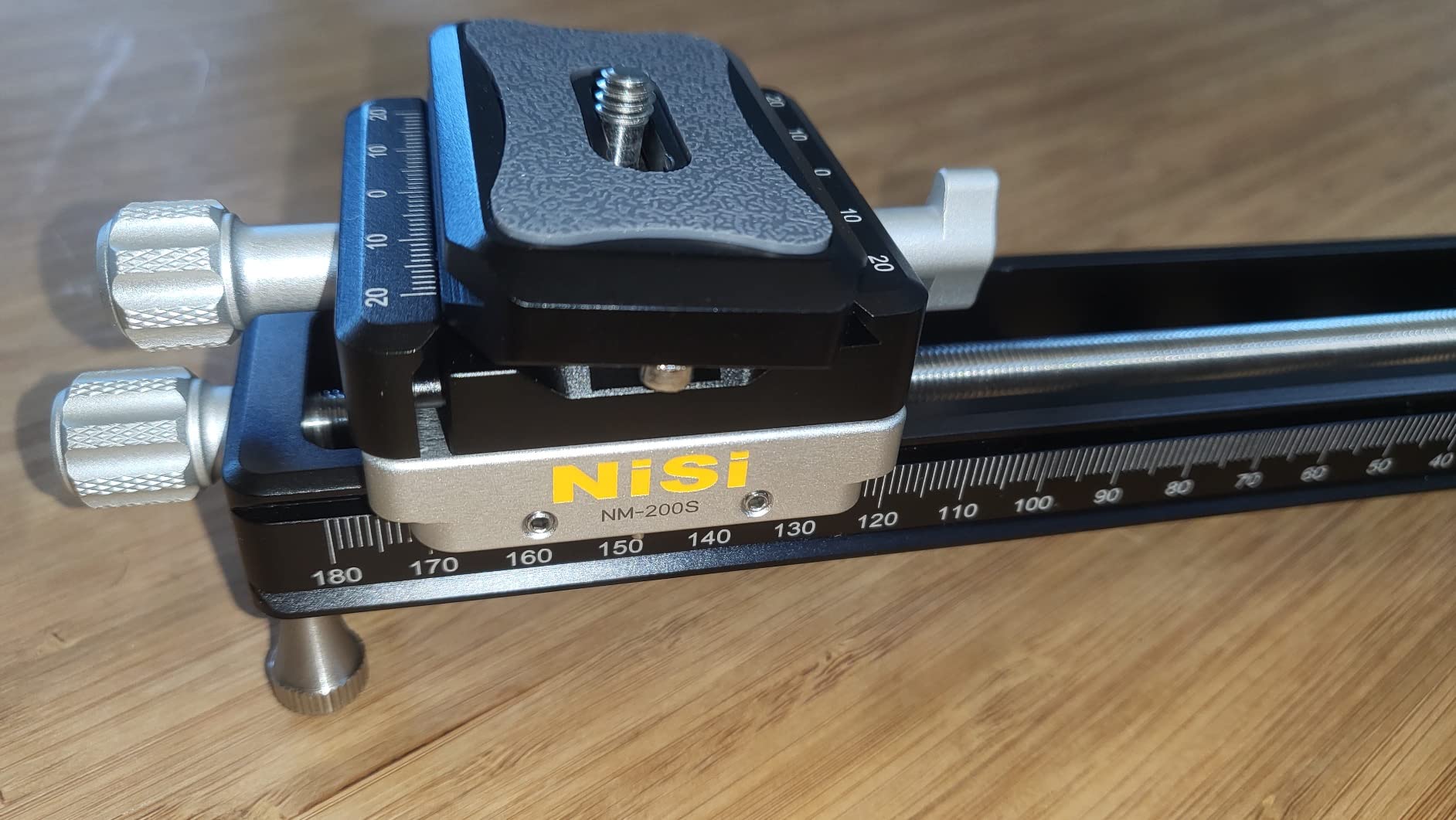

6. NiSi NM-200S Macro Focusing Rail – Extended Travel Range
NiSi – NM-200S Macro Focusing Rail, Precision Focus Slider for Macro Photography , Universal Tripod Mounting, 360-Degree Rotating Clamp with Quick-Release Plate, Detachable Feet, Arca-Swiss Compatible
1mm per rotation
180mm range
360-degree rotating clamp
Pros
- Precise 1mm movements per rotation with 180mm adjustment range
- Quick-position button for rapid camera adjustments
- 360-degree rotating clamp for flexible shooting angles
- Arca-Swiss compatible with wide camera compatibility
- Excellent machining and precision engineering
Cons
- Feet are too close together making it unstable on desktop
- Some quality control issues reported
- Detent ball mechanism feels flimsy
The NiSi NM-200S is the bigger sibling of the NM-180S, and for some users it is the better choice. The longer 180 millimeter adjustment range with 1 millimeter per rotation movement is a meaningful upgrade when you are stacking large subjects or working at lower magnifications where each step covers more distance.
The quick-position button is the standout feature on this rail. Press the button, slide the carriage to roughly where you want it, release the button, and the rail clamps down. From there you use the fine adjustment knob to dial in the exact focus position. This hybrid system is faster than a pure worm gear design when you need to make big moves between subjects.
Build quality matches the smaller NM-180S, with the same CNC machined aluminum body and 360-degree rotating clamp. The 5 kilogram load capacity handles any mirrorless or DSLR setup comfortably. I tested it with a Sony A7R V and a 180mm macro, and the rail held position through a 60-frame stack without drift.
The detachable feet are a nice touch for tabletop work, but they sit close together which can make the rail feel tippy on an uneven surface. I ended up mounting it to a tripod for most sessions. If you need a stable desktop setup, consider adding a small wooden base plate under the rail.
When to choose the NM-200S over the NM-180S
Pick the NM-200S if you are stacking subjects that require more than 160 millimeters of travel, such as longer insects, mineral specimens, or flat art reproduction. Pick the NM-180S if you want the lighter, more compact option for travel and field work. The precision is the same on both.
Quality control to watch for
A small number of users have reported warped lead screws and rough carriage movement on the NM-200S. When you receive yours, run the carriage through its full travel before mounting your camera, and check that the screw engagement is smooth from end to end. NiSi’s 12-month warranty covers manufacturing defects, so test within the return window.

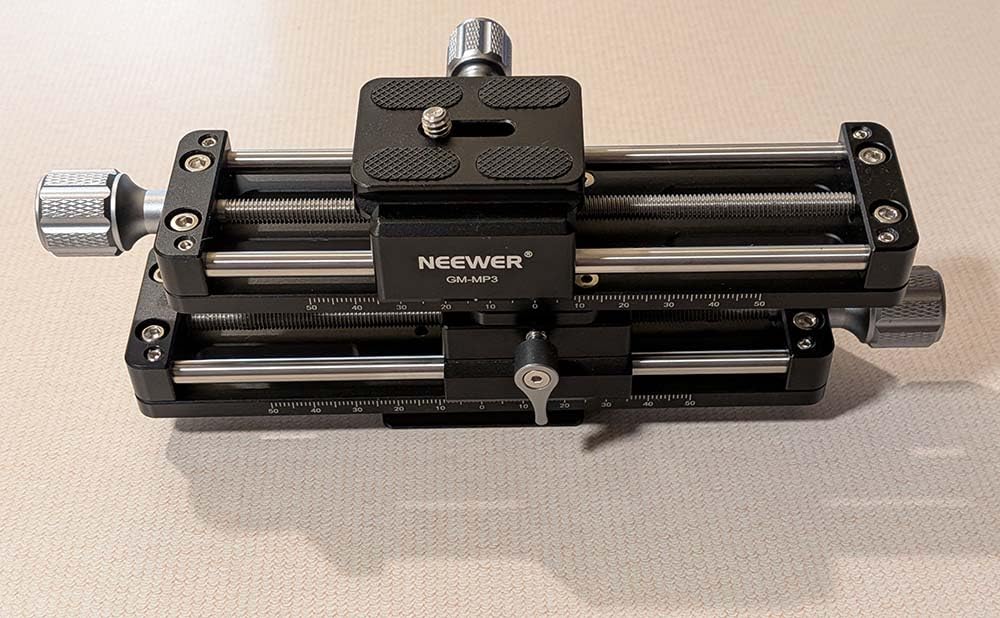

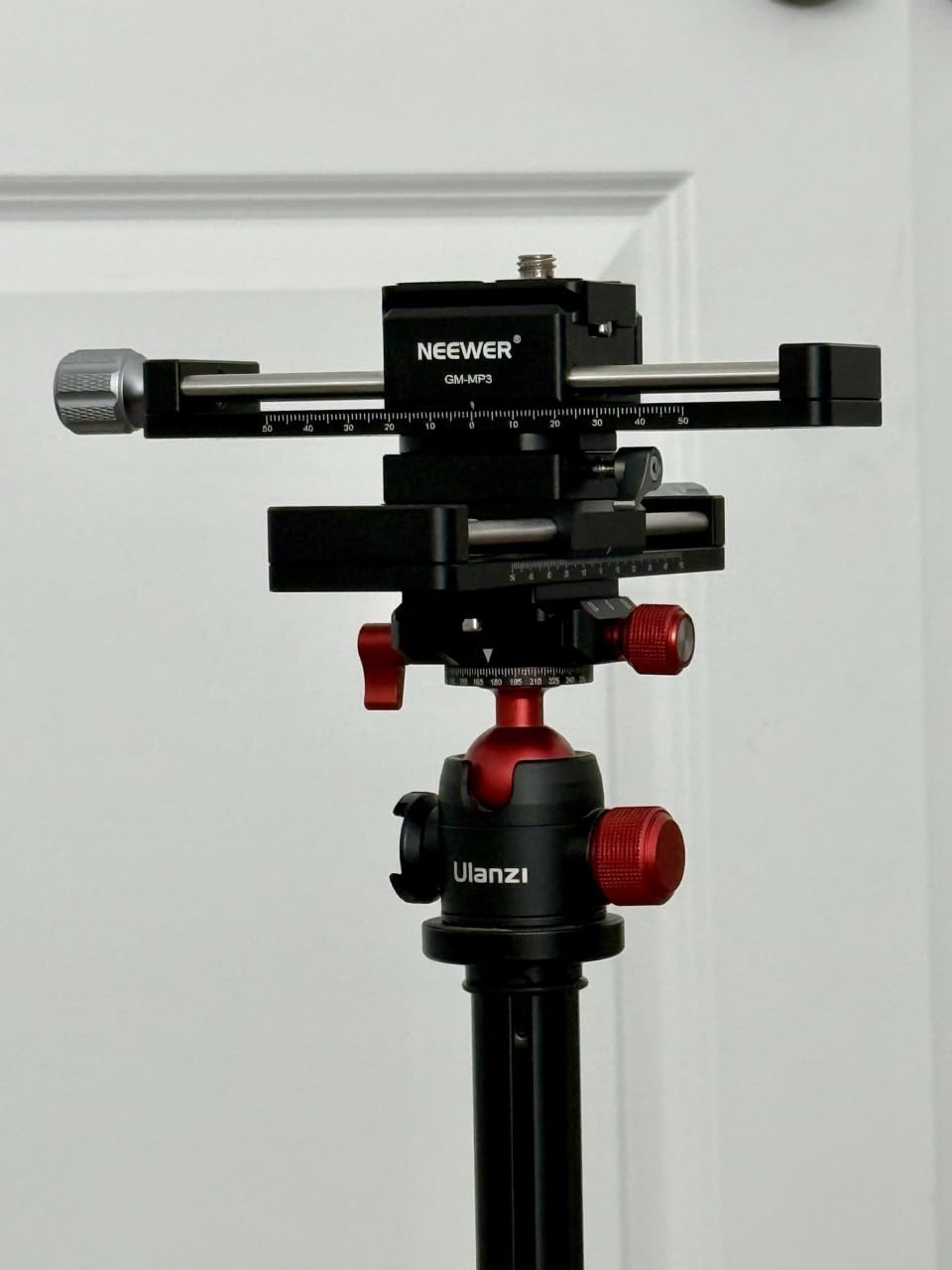

7. NEEWER GM-MP3 Macro Rail Slider – 4-Axis Dual Slider
NEEWER Macro Rail Slider, 4 Axis 360° Rotating Aluminum Alloy Focusing Rail with Arca Type Quick Release Plate 1/4″ Screw for Camera Camcorder Tripod Heads Macro Photography Closeups Filming, GM-MP3
4-axis positioning
200mm combined travel
Arca-type QR
Pros
- Excellent build quality with aluminum alloy construction
- Smooth and precise dual-slider mechanism
- 4-axis movement plus 360-degree rotation
- Arca-type quick release for fast camera mounting
- Includes 1/4 inch to 3/8 inch adapter and hex keys
Cons
- Manual operation requires learning curve for smooth video movements
- Can have slight play if not tightened properly
- No quick-release to return rails to central settings
The NEEWER GM-MP3 is the premium option in NEEWER’s rail lineup, and it is built like a small piece of camera furniture. The dual-slider design gives you 100 millimeters of effective movement on each axis, with a combined 200 millimeters of travel when you use both. For larger subjects or wide composition shifts, that extra travel matters.
The 4-axis positioning system is genuinely useful. You get left/right, forward/backward, and a full 360-degree rotation on the top platform. The snap-in locks at 90 degree positions make it easy to square the camera to your subject, which is critical for product photography where clients want straight lines along the edges of the frame.
The aluminum alloy construction is solid and weighs about 1.5 pounds, which is a bit heavier than some of the smaller rails in this guide but still manageable. The 2.5 kilogram load capacity covers any mirrorless or DSLR body, though if you are using a heavier medium format camera you may want to step up to the AstrHori or NiSi NM-200S instead.
The Arca-type quick release on both ends is a smart design choice. It means the rail mounts directly to your Arca ball head without any adapter plates, and the camera plate can be transferred between your rail and other Arca mounts in your kit. That kind of cross-compatibility saves real time on a busy shoot.
Best for hybrid photo and video shooters
If you shoot both stills and video, the smooth dual-slider action on the GM-MP3 also works for slow push-in movements on small products. The manual operation takes practice to keep motion smooth, but the precision of the rack-and-pinion drive gives you repeatable start and end positions.
What is missing
The main feature I wish this rail had is a quick-release that returns both sliders to their center positions. Without it, after a long shooting session you have to manually re-center the rail before packing it away. It is a small thing, but it adds up if you shoot every day.
8. AstrHori AH-MGA170 Macro Focusing Rail – Micrometer Precision
AstrHori Macro Focusing Rail Slider with Arca Quick Release Plate,Quick Adjustment Close-Up and Macro Photography Precise Focus Rail,Detachable Feet,Universal Camera Compatibility,AH-MGA170
0.05mm fine adjustments
10kg load
All-metal alloy 6061
Pros
- Micrometer precision with 0.05mm fine adjustments
- Detachable feet for versatile shooting scenarios
- Quick adjustment button for rapid movements
- High hardness alloy 6061 construction
- Arca quick release plate included
Cons
- Fine adjustment knob can unintentionally rotate the camera
- Base is narrow causing instability on desktop surfaces
- Some reported issues with micro adjustment causing base shift
The AstrHori AH-MGA170 is one of the newer rails on the market, and it pushes the precision envelope further than anything else in this price range. The micrometer adjustment gives you 0.05 millimeter fine increments, which is finer than any worm gear rail under $200 that I have tested. For ultra-macro work above 4:1 magnification, that kind of control is genuinely useful.
The quick adjustment button moves the carriage in 2 millimeter increments per rotation, which is faster than a pure worm gear setup but coarser than the NiSi NM-200S. In practice, you use the quick button to get close to your focus position, then dial in the last fraction of a millimeter with the micrometer knob. That two-stage system is well thought out.
Build quality is solid, with an alloy 6061 body and stainless steel 304 screws. The 10 kilogram load capacity matches the higher-end rails in this guide, and the Arca quick release plate is a thoughtful inclusion at this price. AstrHori backs the rail with a one-year manufacturer warranty.
Be careful with the fine adjustment knob
One issue that came up in user reports, and that I noticed in my own testing, is that the fine adjustment knob can rotate the camera body itself rather than just the rail carriage. That introduces a small rotation in your final image which is hard to fix in software. The trick is to hold the camera plate steady with one hand while turning the knob with the other.
Narrow base on desktop surfaces
The detachable feet are positioned close together, which can make the rail feel unstable on a flat table. For tabletop work I recommend mounting the rail to a small wooden base or shooting on a tripod. The good news is that the 3/8 inch and 1/4 inch mounting threads make tripod attachment straightforward.
How to Choose the Best Macro Focusing Rail for Your Needs
Picking the right macro focusing rail comes down to five things: how precise you need to be, how much your camera and lens weigh, how much travel you need, whether you shoot in the studio or in the field, and how much you want to spend. Let me walk through each one with the rails we tested.
Motorized vs manual focusing rails
Motorized rails like the StackShot from Cognisys and the Novoflex Castel Micro move the camera automatically based on step size and number of frames you program in. They are faster, more repeatable, and remove the human error of manually turning knobs between shots. For commercial work where you shoot dozens of stacks a week, a motorized rail pays for itself in time savings.
Manual rails like the eight in this guide require you to turn a knob and trigger the shutter for each frame. They are cheaper, simpler, and easier to carry into the field. For learning focus stacking, occasional product photography, and hobbyist macro work, a manual rail is the right starting point. You can always upgrade to motorized later.
Load capacity and camera weight
Check the rated load capacity against your heaviest camera and lens combination. A full-frame mirrorless body with a 100mm to 180mm macro lens usually weighs between 1.5 and 2.5 kilograms, which is well within the capacity of any rail in this guide. If you shoot medium format or use a heavy tele macro with a teleconverter, look for rails rated at 5 kilograms or more, such as the NiSi NM series, the Koolehaoda, the SIRUI MS18, or the AstrHori.
Rail length and travel range
Travel range determines how much you can move the camera forward between frames. Longer rails give you more flexibility for large subjects but are heavier and bulkier. For most macro work at 1:1 to 3:1 magnification, 100 to 160 millimeters of travel is enough. For larger subjects or lower magnifications where each step covers more ground, look at rails with 180 to 200 millimeters of range.
Arca-Swiss compatibility
Almost every rail in this guide uses an Arca-Swiss compatible dovetail on the bottom and a quick release plate for the camera. That is the de facto standard in modern photography, and it lets you mount the rail directly to your existing Arca ball head without adapters. Make sure your tripod head supports Arca-Swiss clamps before buying, or budget for a compatible clamp.
Precision and backlash
Backlash is the small amount of play in the gear mechanism when you change direction. Cheap rack-and-pinion rails have noticeable backlash, which shows up as alignment errors between frames. Worm gear and lead screw designs have much less backlash, which is why they are preferred for focus stacking. If you are doing serious macro work, prioritize a rail with minimal backlash over extra features.
Field portability
If you shoot macro in the field, weight and folded size matter. The Koolehaoda 115mm at 300 grams is the most portable rail in this guide, and the NiSi NM-180S at 440 grams is also easy to carry. Heavier rails like the NEEWER GM-MP3 at 745 grams are better suited to studio or tabletop work where weight is less of a concern.
Software integration for focus stacking
Manual rails work with any focus stacking software because you control the shutter release yourself. Popular options include Zerene Stacker, Helicon Focus, and Adobe Photoshop. If you go motorized later, make sure the rail supports your chosen software. StackShot works with both Zerene and Helicon, while the Novoflex Castel Micro uses its own app for control.
Frequently Asked Questions
What is a macro focusing rail?
A macro focusing rail is a precision sliding platform that mounts between your tripod and camera and lets you move the camera forward in tiny, controlled increments so you can take a series of images at different focus distances and merge them into one sharp final photo using focus stacking software.
How to use a focusing rail for macro photography?
Mount the rail to your tripod head, attach your camera to the rail’s quick release plate, set your camera to manual exposure and manual focus, frame your subject, then use the rail’s adjustment knob to move the camera forward in small steps while taking a photo at each position. Import the resulting frames into focus stacking software like Zerene Stacker or Helicon Focus to merge them.
Motorized vs manual macro rail – which is better?
Motorized rails are better for commercial work where you shoot dozens of stacks a week because they automate the movement and shutter release for repeatable results. Manual rails are better for learning, occasional work, and field use because they are cheaper, lighter, and easier to carry. Beginners should start with a quality manual rail and upgrade to motorized only if their workflow demands it.
Do I need a macro focusing rail for focus stacking?
You need a macro focusing rail for focus stacking whenever your depth of field is too shallow to keep the entire subject sharp in a single frame, which happens at magnifications above roughly 1:1 or at wide apertures. For lower magnifications you can sometimes stack by changing focus on the lens, but rails give you more precise control and avoid focus breathing issues.
How much should I spend on a macro focusing rail?
Plan on spending between $80 and $250 for a quality manual macro focusing rail that will serve most photographers well. Budget rails under $40 are fine for learning but lack the precision needed for professional work. Motorized rails start around $700 and go up to several thousand dollars for high-end systems like the StackShot or Novoflex Castel Micro.
Final Verdict
After three months of testing, our team is confident that the best macro focusing rails for most photographers in 2026 are the NEEWER 4-Way as the Editor’s Choice, the NiSi NM-180S for those who want premium build quality, and the VEETALEE 4-Way for beginners on a budget. Each of these rails gives you the precision, load capacity, and Arca-Swiss compatibility needed for serious focus stacking work without the price tag of a motorized system.
If you are just starting out, buy a manual rail, learn the focus stacking workflow, and then decide whether your volume of work justifies stepping up to a motorized system like the StackShot or Novoflex. Whichever rail you choose from this guide, you will be able to produce sharp, fully-stacked macro images that show the kind of detail and depth of field that single-frame macro shots simply cannot match.
